Overview
The all new C-Series Widescreen redefines multifunction navigation with larger,
brilliant displays, increased performance, expanded networking and video
integration. These high resolution displays give captains a commanding view of
multiple sources of information without compromising readability. Choose full
screen navigation or choose multiple widescreen window combinations of chart,
radar, fishfinder, weather and video – C140W gives you the flexibility to create
the ideal screen configuration for every navigation scenario.

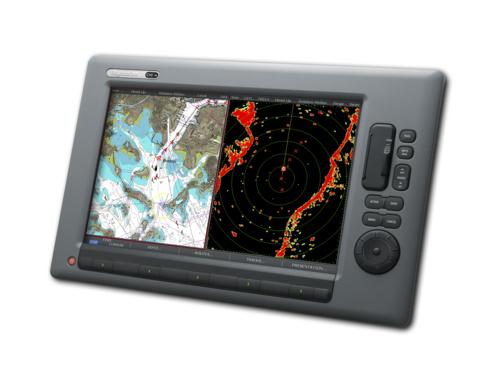

The 14” C140W features a high resolution 1280 x 800 pixel (WXGA) widescreen
display. The C140W is sunlight viewable and utilizes optical bonding technology
for improved contrast, vibrant colors and a wide viewing angle. Display and menu
navigation is also simplified with the all new UniControl™ pad.
C140W is ready to navigate with an internal high sensitivity GPS sensor.
C-Series Widescreen displays are also pre-loaded with ready-to-navigate
Navionics charts. Navigate with high quality pre-loaded Navionics charts or step up to 3D or Satellite photo charts using optional
Navionics Platinum charts on CompactFlash. An on board graphics coprocessor
provides quick chart screen redraws and stunning 3D graphics.
Building your C-Series Widescreen Network is easier than ever with SeaTalkhs.
Build a single widescreen display or create a dual display C-Series Widescreen
network using SeaTakhs to share radar,
chartplotting, fishfinder, weather and navigation functions between two C-Series
Widescreen displays. The C140W also supports SeaTalk and SeaTalkng
protocols for seamless integration with a Raymarine external GPS sensor, LifeTag,
SeaTalk instruments and SeaTalk autopilots. NMEA0183 and NMEA2000 support is
also standard on the C140W providing easy integration with 3rd party
electronics and engine monitoring.
Using SeaTalkng, C-Series Widescreen and
SmartPilot X-Series autopilots go beyond conventional chartplotter-autopilot
communication. C-Series Widescreen displays can actually control autopilot
functions from the chartplotter interface. An autopilot dialog enables the
captain to engage and disengage the autopilot directly from the C-Series display
offering added convenience when using Raymarine’s SmartPilot X-Series for
waypoint and route navigation.
Each C-Series Widescreen display also feature a video input for on-board
cameras. Raymarine Marine Cameras are plug-and-play and offer outstanding video
quality and durability in the marine environment.
The Raymarine C140W kit includes an owners manual, quick reference guide,
suncover, flush mounting kit, and a Power/data/video cable.
C140W Features
- Command view of multiple navigation sources on single widescreen
display
- Simply connect the appropriate sensor to transform the C-Series
Widescreen display into a full function chartplotter, digital
fishfinder, weather, radar or on board video system.
- Sunlight Viewable display with Optical Bonding technology for
improved color and contrast in all lighting conditions
- Super high WXGA resolution - 1280 x 800 pixels
- Intuitive UniControl™ pad simplifies display and menu navigation
SeaTalkhs Networking
- Super fast 100 Megabit networking
- Dual display networking - Share chartplotter, fishfinder, radar,
weather and more across two C-Series Widescreen displays
Chartplotter
- Preloaded with Navionics ready-to-navigate cartography
- Internal high sensitivity GPS sensor
- 3D and Satellite photo maps using optional Navionics Platinum
Charts
Digital Fishfinder
- Connect to DSM30 or DSM300 using SeaTalkhs
networking.
- Patented HD Digital sonar technology for precise targeting of
fish and bottom structure.
- Four fishfinder presets for one touch access to favorite
fishfinder view
Radar
- Compatible with SeaTalkhs digital
radomes
- HD Digital and Super HD Digital open array compatibility
- Auto GST technology to provide hands off operation
- Dual Range radar when used with HD or Super HD Digital Arrays
SIRIUS Weather & Audio
- SIRIUS Satellite weather and radio functionality with optional
SR100 receiver
- View up to the minute animated weather radar, forecasts, storm
warnings and more delivered instantly via satellite.
- Graphical Nowrad radar, sea surface temps, storm tracks, and
more.
- SIRIUS Satellite Radio functionality right on your C-Series
Widescreen display. Set reminders for favorite songs and artists on
over 100 SIRIUS Satellite Radio channels.
Video Integration
- Display remote video sources from CCTV cameras, entertainment
systems, and more.
- Plug and play connectivity with Raymarine CAM100 or CAM50 marine
cameras
Instrument Integration
- Network with SeaTalk, SeaTalk2, SeaTalkng,
SeaTalkhs, NMEA 0183 or NMEA 2000
instruments.
- Display data from NMEA 2000 compatible engine systems.
Autopilot Integration
- Activate and control Raymarine Smartpilot X-Series Autopilots
directly from the chartplotter interface
C140W Specifications
|
AIS Suppport |
Support for class B AIS |
Supports silent mode |
|
Target Symbols |
Sleeping, activated, selected, dangerous and lost |
|
|
Target Information |
AIS vectors, buddy tracking, safety critical data and
full AIS data. |
|
|
Collision Avoidance |
Safe zones and safety messages |
|
|
Alarms |
Local alarm messages, lost targets |
|
|
Cartography |
Embedded Navionics Cartography |
|
|
|
Compatible with Navionics Charts on CompactFlash cards |
|
|
Chart Scaling |
1/32nm (if cartographic detail is available) to 4000nm |
|
|
Waypoints |
3000 waypoints entered via cursor, lat/lon, range and
bearing from present position or at boat’s position. 16
character name can be assigned. Waypoint symbols and
groups. Additional storage available on CompactFlash
cards. |
|
|
Waypoint Transfer |
Waypoints database via NMEA and CompactFlash cards.
Software also available to convert waypoints to Excel
file. |
|
|
Man Overboard (MOB Mode) |
Mark placed with course line; readout shows range,
bearing, lat/lon of MOB and time elapsed since MOB. |
|
|
Presentation Modes |
Head up, Course up or North up (selectable True or
Mag-netic) Relative, Autorange or True Motion Screen
offset Radar or 3D synchronization |
|
|
Routes |
A route plan may contain up to 50 waypoints. Up to 150
routes can be stored in the units internal memory.
Additional storage available on CompactFlash cards.
SmartRoute to create a route from track history. |
|
|
Track History |
15 tracks with up to 3000 points in each can be stored
in the units internal memory. Track optimization reduces
number of points used or user selectable time or
distance interval. Additional storage available on
CompactFlash cards. |
|
|
Radar/Chart Overlay |
Radar image can be overlaid on all screen charts |
|
|
Radar/Chart Synchronization |
To synchronize radar range and chart scale |
|
|
3D/Chart Synchronization |
To synchronize 3D and 2D chart scales and orientation |
|
|
Aerial Overlay |
Overlay of aerial photography on the chart |
|
|
AIS Overlay |
Switch AIS symbols on/off. Display heading/speed vectors
and ROT. View detailed AIS data, safety critical target
data, ALR and SRM messages. Set up a safe zone. |
|
|
Navigation Information |
Own boats position in lat/lon, XTE, TTG and SOG/COG
selectable. Bearing and distance to waypoint. Bearing
and distance to cursor and ETA. |
|
|
3D Presentation Modes |
Active motion mode, planning mode, Adjust rotation and
pitch, port, starboard, forward and aft view, multiple
views, Vessel offset |
|
|
3D Display |
Declutter, Transducer cone, Depth scale, Waypoint name,
Adjust exaggeration, 3D view locator |
|
|
Transducer |
Transom-mount, in-hull or thru-hull options |
|
|
Digital Sounder Modules |
Compatible with the DSM30 and DSM300 |
|
|
Receiver Type |
Patented Raymarine HD Digital receiver technology |
|
|
Power Output |
Dependant on Digital Sounder Module |
|
|
Frequency |
Dependant on Digital Sounder Module |
|
|
Alarms |
Fish Alarm, Fish Depth Alarm, Shallow and Deep Fish
Limit |
|
|
A-Scope Display |
Displays Sonar Returns in real time |
|
|
Bottom Coverage Display |
Shows the diameter of the transducer beam where it meets
the bottom. |
|
|
Bottom Lock |
Displays echoes directly above the bottom |
|
|
Range Markers |
Easily see how far the boat is from a target on the echo
sounder screen |
|
|
Target Detection |
Sonar fish echo with target depth readout |
|
|
Zoom |
2,3,4x and user programmable Zoom Scales |
|
|
Data Display Capabilities |
GPS, Chartplotter, Fishfinder, Radar, External Video,
CDI(Course Deviation Indicator), and customizable Data
Bar display |
|
|
Dimensions |
C140W: 16.9" x 11.3" x 4.4" (428 x 287 x 112) |
|
|
Display (LCD) Size |
C140W: 14.1" |
|
|
Display Colors |
16.7M |
|
|
Display Resolution |
C140W: 1280 x 800 pixels (wide XGA) |
|
|
Display Type |
Sunlight viewable color TFT LCD |
|
|
Mounting Methods |
Console mounting hardware included. Trunnion mounting
kit sold separately |
|
|
Operating and Non-Operating Temperature Limits |
14°F to 122°F (-10°C to 50°C) |
|
|
Power Consumption |
32 Watts (typical) |
|
|
Voltage Range |
10.7–32 volts (12/24v nominal) |
|
|
Waterproofing |
CFR46/IPX6 standards |
|
|
Weight |
C140W: 12.3lbs (5.58kg) |
|
|
Approvals CE - Conforms to FCC - Compliant with |
Essential requirements of 1995/5/EC, 1989/336/EC. CFR47
Parts 2 & 80 |
|
|
Humidity Limit |
up to 95% at 35°C non-condensing |
|
|
Display Windows |
Chart, Radar, Fishfinder, CDI, Video, Data, Weather and
Engine Monitor |
|
|
Screen Functions |
Full, half and quarter screens available dependant on
function. Also 3 window page with 2 x 1/4 page windows
and 1 x 1/2 page window. |
|
|
Illumination |
Screen and keypad: 0 to 100% in 64 steps Day/Night Mode |
|
|
Languages |
English (US), English (UK), Italian, French, Spanish,
German, Norwegian, Dutch, Swedish, Danish, Portuguese,
Finnish, Icelandic, Chinese, Russian, Greek, Japanese,
Korean |
|
|
System Alarms |
Alarm Clock, Anchor, Arrival, Deep, Shallow and Fishing
Depth, MOB, Offtrack, Temperature, Timer |
|
|
Navigation Alarms |
Arrival Alarm, Offtrack XTE Alarm |
|
|
GPS Type |
Internal High Sensitivity Receiver |
|
|
Channels |
12 |
|
|
Frequency |
1.575GHz (L1) |
|
|
Sensitivity |
-159dBm (tracking), -142dBm (acquisition) |
|
|
SBAS Support |
WAAS / EGNOS Compatible |
|
|
Horizontal Position Accuracy |
<=15 metres 95% typical (without SA), <= 5metres 95%
with WAAS/EGNOS |
|
|
Speed Accuracy |
<=0.3kts |
|
|
Antenna |
Helical antenna for even sensitivity across all
orientations |
|
|
Data Pages |
5 pages available. Pre-defined (Navigation, Waypoint,
Route, Fishing or Sailing) or user-configured |
|
|
Data Available |
Vessel position, active waypoint, TTG, VMG - Waypoint,
depth, COG, SOG, heading, speed, set/drift, trip, log,
ground log, ground trip, rudder, local time and date,
sea temperature, app wind, true wind, VMG wind, ground
wind XTE, compass, locked heading, w |
|
|
Engine Pages |
5 pages available. Pre-defined (engine, engine and fuel,
fuel resources, engine and resources, twin engines or
triple engine support) or user-configured. |
|
|
Engine Data |
Tacho, boost pressure, alternator, oil pressure, coolant
temperature, engine hours, fuel level (tanks 1 & 2),
fuel rate, total fuel, load |
|
|
Network Configurations |
Single or dual display configurations |
|
|
SeaTalkhs Network |
2 ports |
|
|
|
Supports 8 devices |
Optional network switch required |
|
NMEA interface |
3 inputs (configurable baud rate) |
|
|
|
2 outputs |
|
|
NMEA 0183 Input |
GLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE,
VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE,
DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600
Navtex or 38,400 AIS |
|
|
NMEA Output - User selectable |
APB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC,
RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA |
|
|
Seatalk Interface |
1 port |
|
|
SeaTalk Input |
Depth,SOG,COG, Position, Waypoint Number, Range/
Bearing, TTG, Boat Speed, Time, XTE, Heading, Wind,
Data, Log/Trip, Pilot Status, Temperature, MOB and
Cursor Position |
|
|
SeaTalk Output |
Cursor Data, Guard Zone and Navigational Data bridged
from NMEA |
|
|
SeaTalk2/NMEA2000 |
1 port |
Also supports SeaTalkng (Next Generation data bus)
connectivity. Adapter cables required for SeaTalkng and
NMEA2000 |
|
Video Input |
Composite Video (NTSC or PAL) Input (BNC connector) |
|
|
Alerts |
Incoming message (selectable categories) |
|
|
Message List |
Sorting |
|
|
Radar Support |
Support for all Digital, HD Digital & Super HD Digital
Radars |
|
|
Image Type |
Color Radar Support (HD & SHD Radars Only) |
|
|
Range Scales (Range Rings) |
1/8 (1/16) nm to 72 (12) nm dependant on scanner.
Performance limited by scanner type and position. |
|
|
Range Ring Accuracy |
Better than +/- 1.5% of the max. range scale in use, or
22m (72 ft.), whichever is the greatest. |
|
|
Bearing Accuracy |
+/- 1° |
|
|
Variable Range Markers |
2 x VRM’s, readout nm, sm, km |
|
|
Electronic Bearing Lines |
2 x EBL’s, floating if required, resolution 1° |
|
|
Bearing Scale |
360° graduated at 10° intervals 2° small ticks 10° large
ticks |
|
|
Minimum Range |
23m (25 yds) |
|
|
Range Discrimination |
23m (25 yds) |
|
|
Presentation Modes |
Head up, Course up or North up (selectable True or
Mag-netic) Relative or True Motion |
|
|
Scanner Control |
Interference rejection, standby/transmit modes, pulse
selection, Tune, Rain, FTC and Sea controls, with
selection of manual or automatic control of gain, sea
clutter and tune (Auto GST) |
|
|
Compass Input |
NMEA 0183 (required for fast heading data, suitable for
MARPA), or SeaTalk |
|
|
Waypoint Display |
Create waypoints and target waypoint displayed with User
control of symbols and groups |
|
|
MARPA |
Manual acquisition of up to 25 targets (dependent upon
scanner type), automatic tracking, dangerous target
alarms, safe zone, target history, true or relative
vectors, CPA graphics and indication of target speed/
course, bearing/ range, CPA and TCPA. |
|
|
Guard Zone Alarm |
2 guard zones, selectable sensitivity level, audible
alarm |
|
|
Automatic Tuning |
Auto control of gain, sea clutter and tune |
|
|
Off Center Function |
In Relative Motion, 1/3 or 2/3 |
|
|
Wakes |
10s, 30s, 1 min, 5 min & 10 min options |
|
|
Target Expansion |
Operator selectable with 2 levels available |
|
|
Timed TX |
Rotation periods: 10, 20 or 30 scans Repetition periods:
3, 5, 10 or 15 minutes |
|
|
AIS Overlay |
Switch AIS symbols on/off. Display heading/speed vectors
and ROT. View detailed AIS data, safety critical target
data, ALR and SRM messages. Set up a safe zone. |
|
|
Type |
SIRIUS Marine Weather |
|
|
Weather Elements |
Storm cast, waves, Canadian radar, lightning, wind, sea
surface temperature, observations stations, city
weather, NOWRad, storm tracks, surface pressure |
|
|
Animated Weather Graphics |
Weather forecast, weather radar history |
|
|
Weather Reports |
Tropical statements, marine warnings, marine zone
forecasts, marine watchbox |
|
|
