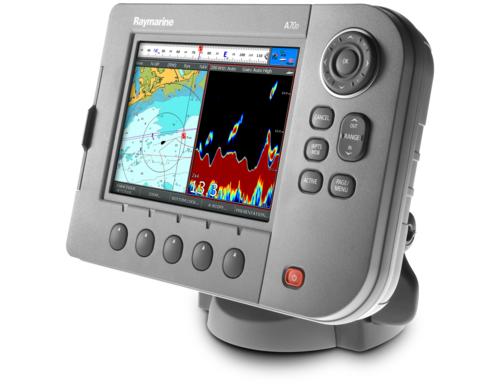

The Raymarine A70D GPS-Chartplotter/Fishfinder is a powerful yet compact
navigation system combined with our award winning HD Digital fishfinder
technology. The A70D features a vibrant direct sunlight viewable high resolution
6.4” VGA color display. The rugged waterproof construction make the A70D a
perfect fit for center consoles and open cockpits.
Sold with or without preloaded charts. Enjoy the flexibility of adding optional
Navionics Gold or HotMaps charts using the onboard CompactFlash card reader. Or
step up to Navionics Platinum for the ultimate chartplotting experience.
Navionics Platinum charts feature 3D and satellite cartography, panoramic port
photos, dynamic tides & currents, enhanced coastal points of interest, and more!
Each Raymarine A70D features a high sensitivity internal WAAS GPS receiver
providing pinpoint chartplotter accuracy. For added flexibility add a RayStar
125 GPS antenna for situations where an external GPS antenna is needed.
Combine GPS and VHF technology for added situational awareness and safety. The
Raymarine A70D utilizes DSC position polling (with DSC equipped VHF) and AIS
target tracking (with optional AIS250) right on your chart
Harnessing the power of Raymarine’s HD Digital fishfinder technology, the A70D’s
built-in digital sounder module offer unmatched fishfinder clarity and
precision. Our patented HD Digital technology enables the A70D to instantly
adapt to changing water and seabed conditions, delivering a dramatically clearer
picture than ordinary analog fishfinders. Plus HD Digital technology enables
true “hands-free” automatic operation, for an optimal fishfinder display at all
times. Also enjoy full chartplotter integration, the A70D lets you mark fish
targets or wrecks as waypoints. Easily switch screens back to the chartplotter
and navigate right to your target!
Simply plug in to the included transom mount transducer and you have the
ultimate digital fishfinder. Using the same patented HD Digital technology as
its big-brother DSM300, the A70D’s built-in sounder packs 500 watts RMS of power
with a dual frequency (50/200 Khz) transceiver for excellent inshore and
offshore performance. Directly compatible with the full array of A-Series
transducers, and adaptable to the DSM300 family of transducers*, a wide
selection of styles are available to fit almost any boat including transom
mounts, thru-hull mounts and in-hull solutions.
The A70D comes with our innovative tilt and swivel bracket featuring a quick
release lever. Once the Raymarine A70D is off the boat keep your cables tidy and
protected with the built-in cable management system and protective cable caps. A
flush mount kit is also available for other helm applications.
Add the optional SR50 weather receiver and the A70D becomes a powerful weather
receiver utilizing SIRIUS Satellite weather technology. Graphical Nowrad radar,
sea surface temperatures, storm tracks, city & buoy forecasts are now all at
your fingertips. The A70D is also SIRIUS Satellite radio capable, simply connect
the SR50 to your boat's existing stereo's auxiliary input. You have complete
control of channels, volume, and can even set reminders for favorite songs and
artists on over 100 SIRIUS radio channels.
The A70D GPS-Chartplotter/Fishfinder comes packaged with a tilt & swivel
bracket, suncover, power/NMEA cable, transom mount transducer, and instruction
manual. The A70D is also SeaTalk capable allowing for engine monitoring with
compatible engines. With SeaTalk you can even activate and control your
Raymarine X-Series SmartPilot directly from the A70D’s chartplotter.
A70D 6.4" Chartplotter/Fishfinder Features
- 6.4” sunlight viewable color display
- High resolution VGA (640 x 480)
- IPX6 waterproof construction
- Tilt & swivel bracket with quick release and cable management
- Activate and control a Raymarine SmartPilot X-series autopilot directly
from the A70D's chartplotter screen
- Two NMEA 0183 Input and Output ports
A70D Chartplotter
- Sold with or without preloaded cartography. Uses optional Navionics Gold
or Platinum charts.
- High speed chart redraw
- Chart Rotation Modes (Head up, Course up and North Up)
- 1200 Waypoints and 150 routes with unlimited waypoint and route storage
using optional CompactFlash memory card
- High sensitivity internal WAAS GPS sensor
- Navionics Gold and Platinum capability
- 3D and satellite photo charts (with optional Platinum Chart Card)
- AIS target tracking (with optional AIS250 module)
A70D Fishfinder
- Superior fishfinder performance using the Built-in Digital Sounder
Module
- 500 Watts RMS Output power
- Raymarine’s patented HD Digital™ fishfinder technology
- Dual frequency (50/200 kHz) for excellent inshore and offshore
performance
- Hands-free HD Digital™ technology automatically adjust more than 220
sonar parameters per second and virtually eliminates clutter
- HD Digital™ adaptive receiver technology precisely targets fish and
bottom structure with amazing clarity
- Transom mount transducer with depth-speed-temperature included.
Additional transom, in-hull, trolling motor and thru-hull transducer options
available.
A70D SIRIUS Weather & Audio
- SIRIUS Satellite weather and radio with optional SR50
- Graphical Nowrad radar, sea surface temperature, storm tracks, and more!
- SIRIUS Satellite radio capability. Set reminders for favorite songs and
artists on over 100 SIRIUS radio channels.
A70D Engine Monitoring
- Connect NMEA 2000 compatible engines with SeaTalk
- Create customizable pages for engine data, trim tabs, instrument data,
and more
| AIS |
|
|
| Target Symbols |
Sleeping, activated,
selected, dangerous and lost. |
|
| Target Information |
AIS vectors, safety
critical data and full AIS data. |
|
| Collision Avoidance |
Safe zones and safety
messages. |
|
| Alarms |
Local alarm messages, lost
targets |
|
| AIS overlay |
Switch AIS symbols on/off.
Display heading/speed vectors and ROT. View detailed AIS data, safety
critical target data, ALR and SRM messages. Set up a safe zone. |
|
| Waypoints |
1200 Waypoints with 16
character names. Additional waypoint storage available on CompactFlash
cards. |
|
| Waypoints Transfer |
Waypoints database via NMEA
and CompactFlash cards. |
|
| Man Overboard (MOB Mode) |
Mark placed with course
line; readout shows range, bearing, lat/lon of MOB and time elapsed
since MOB |
|
| Screen Functions |
Full, half and quarter
screens available dependant on function. Also 3 window page with 2 x 1/4
page windows and 1 x 1/2 page window |
|
| Cartography |
No preloaded cartography.
Compatible with Navionics Gold & Platinum Charts on CompactFlash cards |
|
| Presentaion Modes |
Head up, Course up or North
up (selectable True or Magnetic). Relative, Autorange or True Motion.
Screen offset. 3D synchronization. |
|
| Routes |
150 routes with 50
waypoints per route. Additional routes can be stored CompactFlash cards |
|
| Track History |
Ability to record the
current track with a maximum of 10,000 trackpoints, or save up to 10
tracks with up to 1000 trackpoints in each stored in the units internal
memory. Additional tracks can be stored CompactFlash cards |
|
| 3D/Chart Syncronization |
To synchronize 3D and 2D
chart scales and orientation. |
|
| Aerial overlay |
Overlay of aerial
photograph on the chart |
|
| Navigation information |
Own boats position in lat/lon,
XTE, TTG and SOG/COG selectable. Bearing and distance to waypoint.
Bearing and distance to cursor and ETA |
|
| 3D Presentation Modes |
Active motion mode,
planning mode, Adjust rotation and pitch, port, starboard, forward and
aft view, multiple views, Vessel offset |
|
| 3D Display |
Declutter, Transducer cone,
Depth scale, Waypoint name, Adjust exaggeration, 3D view locator |
|
| Transducer |
Transom-mount, in-hull or
thru-hull options |
|
| Receiver Type |
Patented Raymarine HD
Digital receiver technology |
|
| Power output |
500 Watts RMS |
|
| Frequency |
Dual 200/50 kHz |
|
| Alarms |
Fish alarm, fish alarm
depth, shallow and deep fish limit |
|
| A-Scope Display |
Displays Sonar Returns in
real time |
|
| Bottom Coverage Display |
Shows the diameter of the
transducer beam where it meets the bottom. |
|
| Bottom Lock |
Displays echoes directly
above the bottom. |
|
| Range markers |
Easily see how far the boat
is from a target on the echo sounder screen |
|
| Target Detection |
Sonar fish echo with target
depth readout |
|
| Zoom |
2,3,4x and user
programmable Zoom scales |
|
| Data Display Capabilities |
Chartplotter, CDI(Course
Deviation Indicator), Fishfinder, and customizable Data Bar display |
|
| Diminsions |
(W x H x D) 233 x 171 x
43mm |
|
| Display (LCD) size |
6.4" |
|
| Display colors |
256 |
|
| Display resolution |
640 x 480 pixels (VGA) |
|
| Display type |
Sunlight viewable color TFT
LCD |
|
| Mounting Methods |
Tilt & Swivel Bracket
(Panel Mount optional) |
|
| Operating and non operating
temperature limits |
14°F to 122°F (-10°C to
50°C) |
|
| Power consumption |
8-10 Watts |
|
| Voltage range |
10.7-18 volts (12v nominal) |
|
| Waterproofing |
IPX6 Standards |
|
| Weight |
8.4lbs |
|
| Approvals CE - conforms to
FCC compliant with |
Essential requirements of
1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80 |
|
| Humidity Limit |
up to 95% at 35°C
non-condensing |
|
| Display windows |
Chart, CDI, Data, Weather,
and Engine Monitor |
|
| Illumination |
Screen and keypad: 0 to
100% in 64 steps Day/Night Mode |
|
| Languages |
English (US), English (UK),
Italian, French, Spanish, German, Norwegian, Dutch, Swedish, Danish,
Portuguese, Finnish, Icelandic, Chinese, Russian, Greek, Japanese,
Korean |
|
| System Alarms |
Alarm clock, Anchor,
Arrival, Deep depth, MOB, Offtrack, Shallow depth, Temperature, Timer |
|
| Navigation Alarms |
Arrival alarm, offtrack XTE
alarm |
|
| Data Pages |
5 pages available.
Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing) or
user-configured. |
|
| Data Available |
Vessel position, active
waypoint, TTG, VMG - Waypoint, depth, COG SOG, heading, speed,
set/drift, trip, log, ground log, ground trip, rudder, local time and
date, sea temperature, app wind, true wind, VMG wind, ground wind XTE,
compass, locked heading, wa |
|
| Engine Pages |
5 pages available.
Pre-defined (engine, engine and fuel, fuel resources, engine and
resources, twin engines or triple engine support) or user-configured. |
|
| Engine Data Available |
Tacho, boost pressure,
alternator, oil pressure, coolant temperature, engine hours, fuel level
(tanks 1 & 2), fuel rate, total fuel, load, trim tab, engine trim and
genset |
|
| NMEA 0183 Interface |
2 Input and Output ports |
|
| NMEA 0183 Input Messages |
GLL, GGA, GLC, GTD, VTG,
BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW,
MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600 Navtex
or 38,400 AIS |
|
| NMEA 0183 Output Messages -
User selectable |
APB, BWC, BWR, DBT, DPT,
GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and
ZDA |
|
| SeaTalkng /NMEA2000 |
1 SeaTalkng connector.
SeaTalkng to NMEA2000 adapter available |
|
| Alerts |
Incoming message
(selectable categories) |
|
| Message List |
Sorting |
|
| Type |
SIRIUS Marine Weather |
|
| Weather elements |
Storm cast, waves, Canadian
radar, lightning, wind, sea surface temperature, surface observations
stations, city weather, NOWRad, storm tracks, surface pressure. |
|
| Animated weather graphics |
Weather forecast, weather
radar history |
|
| Weather reports |
Tropical statements, marine
warnings, marine zone fore-casts, marine watchbox. |
|
Accessories
Rebates
