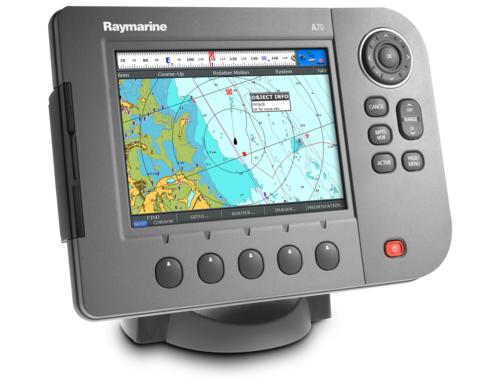

The Raymarine A70 GPS-Chartplotter is powerful navigation system that combines a direct
sunlight viewable high resolution 6.4” VGA color display with advanced
chartplotting. The rugged waterproof construction make the A70 a perfect fit for
center consoles and open cockpits.
Sold with or without preloaded charts. Enjoy the flexibility of
adding optional Navionics Gold or HotMaps charts using the onboard CompactFlash
card reader. Or step up to Navionics Platinum for the ultimate chartplotting
experience. Navionics Platinum charts feature 3D and satellite cartography,
panoramic port photos, dynamic tides & currents, enhanced coastal points of
interest, and more!
Each A70 features a high sensitivity internal WAAS GPS receiver providing
pinpoint chartplotter accuracy. For added flexibility add a RayStar 125 GPS
antenna for situations where an external GPS antenna is needed.
Combine GPS and VHF technology for added situational awareness and safety. The
A70 utilizes DSC position polling (with DSC equipped VHF) and AIS target
tracking (with optional AIS250) right on your chart
The Raymarine A70 comes with our innovative tilt and swivel bracket featuring a quick
release lever. Once the Raymarine A70 is off the boat keep your cables tidy and protected
with the built-in cable management system and protective cable caps. A flush
mount kit is also available for other helm applications.
Add the optional SR50 weather receiver and the A70 becomes a powerful weather
receiver utilizing SIRIUS Satellite weather technology. Graphical Nowrad radar,
sea surface temperatures, storm tracks, city & buoy forecasts are now all at
your fingertips. The A70 is also SIRIUS Satellite radio capable, simply connect
the SR50 to your boat's existing stereo's auxiliary input. You have complete
control of channels, volume, and can even set reminders for favorite songs and
artists on over 100 SIRIUS radio channels.
The A70 GPS-Chartplotter comes packaged with a tilt & swivel bracket, suncover,
power/NMEA cable, and instruction manual. The A70 is also SeaTalk capable
allowing for engine monitoring with compatible engines. With SeaTalk you can
even activate and control your Raymarine X-Series SmartPilot directly from the
A70’s chartplotter.
A70 6.4" Chartplotter Features
- 6.4” sunlight viewable color display
- High resolution VGA (640 x 480)
- IPX6 waterproof construction
- Tilt & swivel bracket with quick release and cable management
- Activate and control a Raymarine SmartPilot X-series autopilot directly
from the A70's chartplotter screen
- Two NMEA 0183 Input and Output ports
A70 Chartplotter
- Sold with or without preloaded cartography. Uses optional Navionics Gold
or Platinum charts.
- High speed chart redraw
- Chart Rotation Modes (Head up, Course up and North Up)
- 1200 Waypoints and 150 routes with unlimited waypoint and route storage
using optional CompactFlash memory card
- High sensitivity internal WAAS GPS sensor
- Navionics Gold and Platinum capability
- 3D and satellite photo charts (with optional Platinum Chart Card)
- AIS target tracking (with optional AIS250 module)
A70 SIRIUS Weather & Audio
- SIRIUS Satellite weather and radio with optional SR50
- Graphical Nowrad radar, sea surface temperature, storm tracks, and more!
- SIRIUS Satellite radio capability. Set reminders for favorite songs and
artists on over 100 SIRIUS radio channels.
A70 Engine Monitoring
- Connect NMEA 2000 compatible engines with SeaTalk
- Create customizable pages for engine data, trim tabs, instrument data,
and more!
Specifications
| Target Symbols |
Sleeping, activated, selected, dangerous and lost. |
|
| Target Information |
AIS vectors, safety critical data and full
AIS data. |
|
| Collision Avoidance |
Safe zones and safety messages. |
|
| Alarms |
Local alarm messages, lost targets |
|
| AIS overlay |
Switch AIS symbols on/off. Display heading/speed
vectors and ROT. View detailed AIS data, safety critical target data,
ALR and SRM messages. Set up a safe zone. |
|
| Waypoints |
1200 Waypoints with 16 character names. Additional
waypoint storage available on CompactFlash cards. |
|
| Waypoints Transfer |
Waypoints database via NMEA and CompactFlash cards.
|
|
| Man Overboard (MOB Mode) |
Mark placed with course line; readout shows range,
bearing, lat/lon of MOB and time elapsed since MOB |
|
| Screen Functions |
Full, half and quarter screens available dependant on
function. Also 3 window page with 2 x 1/4 page windows and 1 x 1/2 page
window |
|
| Cartography |
No preloaded cartography. Compatible with Navionics
Gold & Platinum Charts on CompactFlash cards |
|
| Presentaion Modes |
Head up, Course up or North up (selectable True or
Magnetic). Relative, Autorange or True Motion. Screen offset. 3D
synchronization. |
|
| Routes |
150 routes with 50 waypoints per route. Additional
routes can be stored CompactFlash cards |
|
| Track History |
Ability to record the current track with a maximum of
10,000 trackpoints, or save up to 10 tracks with up to 1000 trackpoints
in each stored in the units internal memory. Additional tracks can be
stored CompactFlash cards |
|
| 3D/Chart Syncronization |
To synchronize 3D and 2D chart scales and orientation. |
|
| Aerial overlay |
Overlay of aerial photograph on the chart |
|
| Navigation information |
Own boats position in lat/lon, XTE, TTG and SOG/COG
selectable. Bearing and distance to waypoint. Bearing and distance to
cursor and ETA |
|
| 3D Presentation Modes |
Active motion mode, planning mode, Adjust rotation and
pitch, port, starboard, forward and aft view, multiple views, Vessel
offset |
|
| 3D Display |
Declutter, Transducer cone, Depth scale, Waypoint name,
Adjust exaggeration, 3D view locator |
|
| Data Display Capabilities |
Chartplotter, CDI(Course Deviation Indicator), and
customizable Data Bar display |
|
| Diminsions |
(W x H x D) 233 x 171 x 43mm |
|
| Display (LCD) size |
6.4" |
|
| Display colors |
256 |
|
| Display resolution |
640 x 480 pixels (VGA) |
|
| Display type |
Sunlight viewable color TFT LCD |
|
| Mounting Methods |
Tilt & Swivel Bracket (Panel Mount optional) |
|
| Operating and non operating temperature limits |
14°F to 122°F (-10°C to 50°C) |
|
| Power consumption |
6-8Watts |
|
| Voltage range |
10.7-18 volts (12v nominal) |
|
| Waterproofing |
IPX6 Standards |
|
| Weight |
8.4lbs |
|
| Approvals CE - conforms to FCC compliant with |
Essential requirements of 1995/5/EC, 1989/336/EC. CFR47
Parts 2 & 80 |
|
| Humidity Limit |
up to 95% at 35°C non-condensing |
|
| Display windows |
Chart, CDI, Data, Weather, and Engine Monitor |
|
| Illumination |
Screen and keypad: 0 to 100% in 64 steps Day/Night Mode
|
|
| Languages |
English (US), English (UK), Italian, French, Spanish,
German, Norwegian, Dutch, Swedish, Danish, Portuguese, Finnish,
Icelandic, Chinese, Russian, Greek, Japanese, Korean |
|
| System Alarms |
Alarm clock, Anchor, Arrival, Deep depth, MOB, Offtrack,
Shallow depth, Temperature, Timer |
|
| Navigation Alarms |
Arrival alarm, offtrack XTE alarm |
|
| Data Pages |
5 pages available. Pre-defined (Navigation, Waypoint,
Route, Fishing or Sailing) or user-configured. |
|
| Data Available |
Vessel position, active waypoint, TTG, VMG - Waypoint,
depth, COG SOG, heading, speed, set/drift, trip, log, ground log, ground
trip, rudder, local time and date, sea temperature, app wind, true wind,
VMG wind, ground wind XTE, compass, locked heading, wa |
|
| Engine Pages |
5 pages available. Pre-defined (engine, engine and
fuel, fuel resources, engine and resources, twin engines or triple
engine support) or user-configured. |
|
| Engine Data Available |
Tacho, boost pressure, alternator, oil pressure,
coolant temperature, engine hours, fuel level (tanks 1 & 2), fuel rate,
total fuel, load, trim tab, engine trim and genset |
|
| NMEA 0183 Interface |
2 Input and Output ports |
|
| NMEA 0183 Input Messages |
GLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE,
VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE, DSC and ZDA.
Selectable to 4800, 4800 Navtex, 9600 Navtex or 38,400 AIS |
|
| NMEA 0183 Output Messages - User selectable |
APB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC,
RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA |
|
| SeaTalkng /NMEA2000 |
1 SeaTalkng connector. SeaTalkng to NMEA2000 adapter
available |
|
| Alerts |
Incoming message (selectable categories) |
|
| Message List |
Sorting |
|
| Type |
SIRIUS Marine Weather |
|
| Weather elements |
Storm cast, waves, Canadian radar, lightning, wind, sea
surface temperature, surface observations stations, city weather, NOWRad,
storm tracks, surface pressure. |
|
| Animated weather graphics |
Weather forecast, weather radar history |
|
| Weather reports |
Tropical statements, marine warnings, marine zone
fore-casts, marine watchbox. |
|
|
