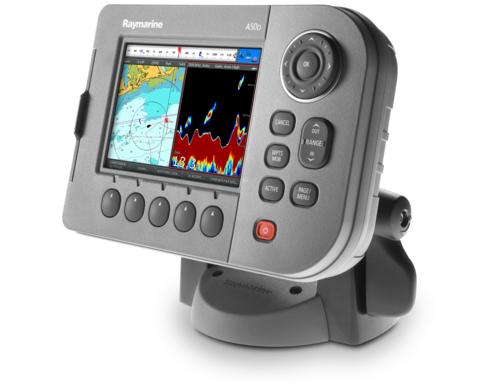

The A50D GPS-Chartplotter/Fishfinder is a powerful yet compact navigation
system combined with our award winning HD Digital fishfinder technology. The
A50D features a vibrant direct sunlight viewable high resolution 5” VGA color
display. The rugged waterproof construction make the A50D a perfect fit for
center consoles and open cockpits.
Each A50D features a high sensitivity internal WAAS GPS receiver providing
pinpoint chartplotter accuracy. For added flexibility add a RayStar 125 GPS
antenna for situations where an external GPS antenna is needed.
Combine GPS and VHF technology for added situational awareness and safety. The
A50D utilizes DSC position polling (with DSC equipped VHF) and AIS target
tracking (with optional AIS250) right on your chart
Harnessing the power of Raymarine’s HD Digital fishfinder technology, the
A50D’s built-in digital sounder module offer unmatched fishfinder clarity and
precision. Our patented HD Digital technology enables the A50D to instantly
adapt to changing water and seabed conditions, delivering a dramatically clearer
picture than ordinary analog fishfinders. Plus HD Digital technology enables
true “hands-free” automatic operation, for an optimal fishfinder display at all
times. Also enjoy full chartplotter integration, the A50D lets you mark fish
targets or wrecks as waypoints. Easily switch screens back to the chartplotter
and navigate right to your target!
Simply plug in to the included transom mount transducer and you have the
ultimate digital fishfinder. Using the same patented HD Digital technology as
its big-brother DSM300, the A50D’s built-in sounder packs 500 watts RMS of power
with a dual frequency (50/200 Khz) transceiver for excellent inshore and
offshore performance. Directly compatible with the full array of A-Series
transducers, and adaptable to the DSM300 family of transducers*, a wide
selection of styles are available to fit almost any boat including transom
mounts, thru-hull mounts and in-hull solutions.
The Raymarine A50D comes with our innovative tilt and swivel bracket
featuring a quick release lever. Once the A50D is off the boat keep your cables
tidy and protected with the built-in cable management system and protective
cable caps. A flush mount kit is also available for other helm applications.
Add the optional SR50 weather receiver and the Raymarine A50D becomes a powerful
weather receiver utilizing SIRIUS Satellite weather technology. Graphical Nowrad
radar, sea surface temperatures, storm tracks, city & buoy forecasts are now all
at your fingertips. The A50 is also SIRIUS Satellite radio capable, simply
connect the SR50 to your boat's existing stereo's auxiliary input. You have
complete control of channels, volume, and can even set reminders for favorite
songs and artists on over 100 SIRIUS radio channels.
The A50D GPS-Chartplotter/Fishfinder comes packaged with a tilt & swivel
bracket, suncover, power/NMEA cable, transom mount transducer, and instruction
manual. The A50D is also SeaTalk capable
allowing for engine monitoring with compatible engines. With SeaTalk you can
even activate and control your Raymarine X-Series SmartPilot directly from the
A50D’s chartplotter.
The A50D can be ordered with preloaded charts or without. Enjoy the
flexibility of adding optional Navionics Gold or HotMaps charts using the
onboard CompactFlash card reader. Or step up to Navionics Platinum for the
ultimate chartplotting experience. Navionics Platinum charts feature 3D and
satellite cartography, panoramic port photos, dynamic tides & currents, enhanced
coastal points of interest, and more!
Features
- 5” sunlight viewable color display
- High resolution VGA (640 x 480)
- IPX6 waterproof construction
- Tilt & swivel bracket with quick release and cable management
- Activate and control a Raymarine SmartPilot X-series autopilot directly
from the A50D's chartplotter screen
- Two NMEA 0183 Input and Output ports
A50D Chartplotter
- Preloaded cartography optional (select option below)
- High speed chart redraw
- Chart Rotation Modes (Head up, Course up and North Up)
- 1200 Waypoints and 150 routes with unlimited waypoint and route storage
using optional CompactFlash memory card
- High sensitivity internal WAAS GPS sensor
- Navionics Gold and Platinum capability
- 3D and satellite photo charts (with optional Platinum Chart Card)
- AIS target tracking (with optional AIS250 module)
A50D Fishfinder
- Superior fishfinder performance using the Built-in Digital Sounder
Module
- 500 Watts RMS Output power
- Raymarine’s patented HD Digital™ fishfinder technology
- Dual frequency (50/200 kHz) for excellent inshore and offshore
performance
- Hands-free HD Digital™ technology automatically adjust more than 220
sonar parameters per second and virtually eliminates clutter
- HD Digital™ adaptive receiver technology precisely targets fish and
bottom structure with amazing clarity
- Transom mount transducer with depth-speed-temperature included.
Additional transom, in-hull, trolling motor and thru-hull transducer options
available.
A50D SIRIUS Weather & Audio
- SIRIUS Satellite weather and radio with optional SR50
- Graphical Nowrad radar, sea surface temperature, storm tracks, and more!
- SIRIUS Satellite radio capability. Set reminders for favorite songs and
artists on over 100 SIRIUS radio channels.
A50D Engine Monitoring
- Connect NMEA 2000 compatible engines with SeaTalk
- Create customizable pages for engine data, trim tabs, instrument data,
and more!
| AIS
(optional) |
|
|
Target Information |
AIS
vectors, safety critical data and full AIS data. |
| Collision
Avoidance |
Safe zones and
safety messages. |
|
| Alarms |
Local alarm
messages, lost targets |
|
| AIS overlay |
Switch AIS
symbols on/off. Display heading/speed vectors and ROT. View detailed AIS
data, safety critical target data, ALR and SRM messages. Set up a safe
zone. |
|
| Waypoints |
1200 Waypoints
with 16 character names. Additional waypoint storage available on
CompactFlash cards. |
|
| Waypoints
Transfer |
Waypoints
database via NMEA and CompactFlash cards. |
|
| Man Overboard
(MOB Mode) |
Mark placed
with course line; readout shows range, bearing, lat/lon of MOB and time
elapsed since MOB |
|
| Screen
Functions |
Full, half and
quarter screens available dependant on function. Also 3 window page with
2 x 1/4 page windows and 1 x 1/2 page window |
|
| Cartography |
No preloaded
cartography. Compatible with Navionics Gold & Platinum Charts on
CompactFlash cards |
|
| Presentaion
Modes |
Head up, Course
up or North up (selectable True or Magnetic). Relative, Autorange or
True Motion. Screen offset. 3D synchronization. |
|
| Routes |
150 routes with
50 waypoints per route. Additional routes can be stored CompactFlash
cards |
|
| Track History |
Ability to
record the current track with a maximum of 10,000 trackpoints, or save
up to 10 tracks with up to 1000 trackpoints in each stored in the units
internal memory. Additional tracks can be stored CompactFlash cards |
|
| 3D/Chart
Syncronization |
To synchronize
3D and 2D chart scales and orientation. |
|
| Aerial overlay |
Overlay of
aerial photograph on the chart |
|
| Navigation
information |
Own boats
position in lat/lon, XTE, TTG and SOG/COG selectable. Bearing and
distance to waypoint. Bearing and distance to cursor and ETA |
|
| 3D Presentation
Modes |
Active motion
mode, planning mode, Adjust rotation and pitch, port, starboard, forward
and aft view, multiple views, Vessel offset |
|
| 3D Display |
Declutter,
Transducer cone, Depth scale, Waypoint name, Adjust exaggeration, 3D
view locator |
|
| Data Display
Capabilities |
Chartplotter,
CDI(Course Deviation Indicator), and customizable Data Bar display |
|
| Diminsions |
(W x H x D) 200
x 142 x 43mm |
|
| Display (LCD)
size |
5" |
|
| Display colors |
256 |
|
| Display
resolution |
640 x 480
pixels (VGA) |
|
| Display type |
Sunlight
viewable color TFT LCD |
|
| Mounting
Methods |
Tilt & Swivel
Bracket (Panel Mount optional) |
|
| Operating and
non operating temperature limits |
14°F to 122°F
(-10°C to 50°C) |
|
| Power
consumption |
6-8Watts |
|
| Voltage range |
10.7-18 volts
(12v nominal) |
|
| Waterproofing |
IPX6 Standards |
|
| Weight |
7.3lbs |
|
| Approvals CE -
conforms to FCC compliant with |
Essential
requirements of 1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80 |
|
| Humidity Limit |
up to 95% at
35°C non-condensing |
|
| Display windows |
Chart, CDI,
Data, Weather, and Engine Monitor |
|
| Illumination |
Screen and
keypad: 0 to 100% in 64 steps Day/Night Mode |
|
| Languages |
English (US),
English (UK), Italian, French, Spanish, German, Norwegian, Dutch,
Swedish, Danish, Portuguese, Finnish, Icelandic, Chinese, Russian,
Greek, Japanese, Korean |
|
| System Alarms |
Alarm clock,
Anchor, Arrival, Deep depth, MOB, Offtrack, Shallow depth, Temperature,
Timer |
|
| Navigation
Alarms |
Arrival alarm,
offtrack XTE alarm |
|
| Data Pages |
5 pages
available. Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing)
or user-configured. |
|
| Data Available |
Vessel
position, active waypoint, TTG, VMG - Waypoint, depth, COG SOG, heading,
speed, set/drift, trip, log, ground log, ground trip, rudder, local time
and date, sea temperature, app wind, true wind, VMG wind, ground wind
XTE, compass, locked heading, wa |
|
| Engine Pages |
5 pages
available. Pre-defined (engine, engine and fuel, fuel resources, engine
and resources, twin engines or triple engine support) or
user-configured. |
|
| Engine Data
Available |
Tacho, boost
pressure, alternator, oil pressure, coolant temperature, engine hours,
fuel level (tanks 1 & 2), fuel rate, total fuel, load, trim tab, engine
trim and genset |
|
| NMEA 0183
Interface |
2 Input and
Output ports |
|
| NMEA 0183 Input
Messages |
GLL, GGA, GLC,
GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT,
APB, VLW, MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex,
9600 Navtex or 38,400 AIS |
|
| NMEA 0183
Output Messages - User selectable |
APB, BWC, BWR,
DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL,
VHF/DSC and ZDA |
|
| SeaTalkng
/NMEA2000 |
1 SeaTalkng
connector. SeaTalkng to NMEA2000 adapter available |
|
| Alerts |
Incoming
message (selectable categories) |
|
| Message List |
Sorting |
|
| Type |
SIRIUS Marine
Weather |
|
| Weather
elements |
Storm cast,
waves, Canadian radar, lightning, wind, sea surface temperature, surface
observations stations, city weather, NOWRad, storm tracks, surface
pressure. |
|
| Animated
weather graphics |
Weather
forecast, weather radar history |
|
| Weather reports |
Tropical
statements, marine warnings, marine zone fore-casts, marine watchbox. |
| Fishfinder |
|
| Transducer |
Transom-mount
included, in-hull or thru-hull options |
| Receiver Type |
Patented
Raymarine HD Digital receiver technology |
| Power output |
500 Watts RMS |
| Frequency |
Dual 200/50 kHz |
| Alarms |
Fish alarm,
fish alarm depth, shallow and deep fish limit |
|
