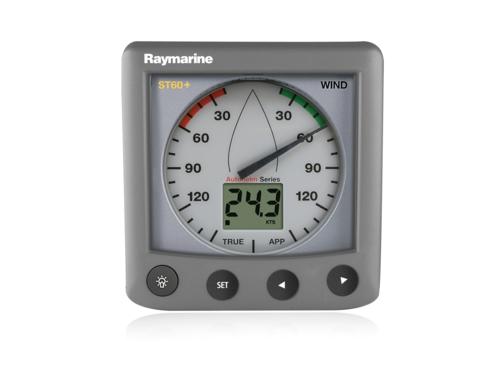

Raymarine ST60 Plus Wind Display - Raymarine SeaTalk ST60 Plus Marine Instruments

Backlighting

Three levels plus off

Display Digits Size

1.43" (36.4mm), Tridata 0.75" (19mm), analogue 0.5" (13mm) Maxiview 1.6" (41.2mm)

Environmental

Waterproofing to U.S.C.G. CFR-46 Standard

Interfaces

SeaTalk or NMEA 0183 via ST60 Multi or interface box

Keypad Lighting

backlit (except MaxiView)

Mounting

Standard console mounting, optional low profile flush mount(order number A25003) and trunion mount kit (order number E25009)

Operating Temp

14F - 158F (-10C - 70C)

Operating Voltage

10V - 16V

Operation

Master or repeater

Power Consumption

45mA (analogue 65mA)

Remote Operation

Optional remote keypad or control via ST7001 Autopilot control head

Transducer Cable Lengths

45' (13.8m) standard, long arm wind 97.5' (30m), short arm wind 97.5' (30m) and rotavecta 65' (20m)

Optional Long Arm Wind Transducer

Model number E25109 Supplied with 30m (97.5') of cable

Combine with ST60 Wind Display only model number A22005 to build a complete system

Rotavecta Wind Transducer

Supplied with 20m (65') of cable

Standard with A22011 ST60 Wind System

Short Arm Wind Tranducer

Supplied with 30m (97.5') of cable

Standard with A22012 ST60 Wind System

Item #	Description	Price	Order
NAVGP1041	NavPod GP1041 Minimum Advertised Price, Click BUY for your price =>	MAP Price $329.99
NAVGP1171	NavPod GP1171 Minimum Advertised Price, Click BUY for your price =>	MAP Price $479.99
RAY D284	Raymarine 1M Seatalk Cable	$29.99
RAY D288	Raymarine 20M Seatalk Cable	$73.99
RAY D285	Raymarine 3M Seatalk Cable	$31.99
RAY D286	Raymarine 5M Seatalk Cable	$39.99
RAY D287	Raymarine 9M Seatalk Cable	$43.99
RAYA25003-P	Raymarine A25003-P Flush Mount for ST60 Plus	$32.83
RAYA25004P	Raymarine A25004P Sun Cover F/ST60 Plus	$19.15
RAYA25005P	Raymarine A25005P Sun Cover for ST60 Plus F/Flush Mount	$19.15
RAYR28170	Raymarine Masthead F/ST60 Only	$319.20
RAYE25009	Raymarine Mounting Bracket Kit for ST60	$48.99
RAY D244	Raymarine Seatalk Junction Box	$33.99
RAYD229	Raymarine Seatalk Powercord	$23.00
RAYE15023	Raymarine SmartController Wireless Remote Minimum Advertised Price, Click BUY for your price =>	MAP Price $549.00
RAYA25003	Raymarine ST60 Plus Flush Mount Kit	$33.99
RAYE22075P	Raymarine ST60 Plus Graphic Display Minimum Advertised Price, Click BUY for your price =>	MAP Price $499.00
RAYZ195	Raymarine Z195 Rotovector Masthead	$228.00
