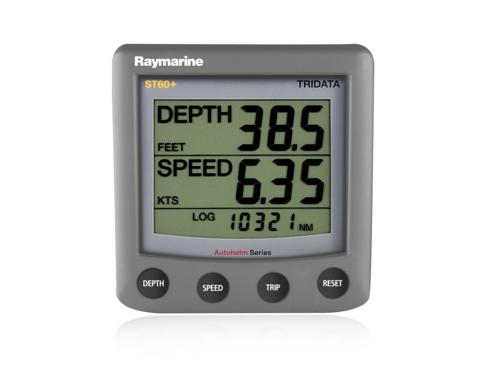

Raymarine ST60 Plus Tridata Display
| | |
Backlighting |
Three levels plus off | |
Display Digits Size |
1.43" (36.4mm), Tridata 0.75" (19mm), analogue 0.5" (13mm) Maxiview 1.6" (41.2mm)
| |
Environmental |
Waterproofing to U.S.C.G. CFR-46 Standard | |
Interfaces |
SeaTalk or NMEA 0183 via ST60 Multi or interface box | |
Keypad Lighting |
backlit (except MaxiView) | |
Mounting |
Standard console mounting, optional low profile flush mount (order number A25003) and trunion mount kit (order number E25009) | |
Operating Temp |
14F - 158F (-10C - 70C) | |
Operating Voltage |
10V - 16V | |
Operation |
Master or repeater | |
Power Consumption |
45mA (analogue 65mA) | |
Remote Operation |
Optional remote keypad or control via ST7001 Autopilot control head | |
Transducer Cable Lengths |
45' (13.8m) standard, long arm wind 97.5' (30m), short arm wind 97.5' (30m) and rotavecta 65' (20m)
| |
Specifications
- Depth performance: 2.6' - 600' (0.8 - 180 m)
- Maximum and minimum depth display
- Depth trend indicator
- Adjustable display response
- Transducer keel or waterline offset
- Autopilot status indication
- Speed: 0 - 60 knots (kts, mph or kph)
- Maximum/average speed
- Cumulative Log: 0 - 99,999nm
- Resettable trip: 0 - 999nm
- 1/100 knot resolution
- Sea temperature
- Stopwatch/lap time
- 10 and 5 minute race start timer
- VMG (Velocity Made Good)
- SOG (requires data on SeaTalk)
- Autopilot status indicator
- Speed Calibration via SOG (Speed over Ground)
|
