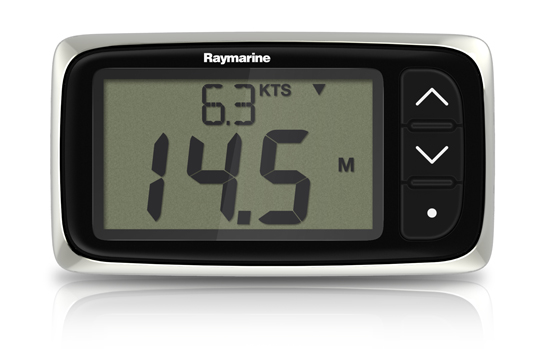

  Raymarine i40 Bidata
Click to enlarge

Raymarine i40 Bidata

Item #: RAYE70066



Quantity:

12%

List Price:

$264.99

Price:

$231.99



Flat Rate $10.95 Shipping Available!


Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Raymarine i40 Depth

Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted.

Extra large (28mm max) digits and razor sharp LCDs - easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions.

Raymarine i40 Bidata
  • Speed, depth, log and sea temperature.
  • Two sets of data at once in large or small digits

Key features:

  • Red backlighting for improved visibility
  • Large controls for ease of use at sea
  • Low power consumption for increased battery life.
  • SeaTalk interface (SeaTalkng when used with SeaTalk converter)
  • Built-in transducer interface
  • Same footprint as the older Raymarine ST40 instrumentation
Dimensions View dimensions diagram
Nominal voltage 12V DC
Operating voltage range
10 - 16V DC
Current consumptions (12V supply) typical
Speed and Wind: 25mA
Depth: 30mA
Bidata: 35mA
Current consumptions (12V supply) maximum
100 mA
Operating temperature
0ºC to +55ºC
Storage temperature
-30ºC to +70ºC
Relative humidity
up to 93%
Water proofing IPX6
Connections SeaTalk, Speed transducer connections, Depth transducer connections
Conformance Europe 2004/108/EC
