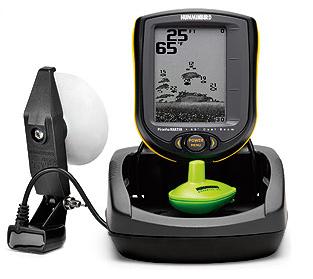

Humminbird PiranhaMAX 230 Pt Portable FishfinderPiranhaMAX 230 Portable features traditional and wireless technology in one
compact, portable unit to locate fish anywhere possible
Portable Features
- Rugged portable case protects fishfinder while in storage or transport.
- No-skid bottom helps keeps fishfinder in place
- Built-in transducer cable wrap with cover
- Suction cup transducer mounts on most aluminum, wood and fiberglass
hulls with smooth surface.
- Operates on 8 easily available AA batteries
Fishfinder Features
- High definition 160Vx132H, 4" diagonal display
- SmartCast® Advanced Remote Sonar Sensor with 4 level grayscale sonar,
water temperature and programmable light for night fishing.
- Easy One-Touch control accesses full set of advanced features
- Traditional 20º & 60º dual beam sonar and depth to 600 feet.
- SmartCast 90º single beam wireless sonar with operating range to 100
feet and depth capability to 120 feet.
- 800 Watts peak to peak (100 Watts RMS) power output.
- Water temperature included in transducer
- Ultra-compact size mounts almost anywhere
Specifications
| Display Size: |
4” Diagonal |
| Display Matrix: |
160V x 132H |
| Display Type: |
4 Level Grayscale
High Contrast FSTN LCD
|
Power Output
(RMS): |
100 Watts |
Power Output
(Peak to Peak): |
800 Watts |
| Operating Frequency: |
200kHz/125kHz
(Wireless) |
| Sonar Coverage: |
Dual Beam:
20° @ -10db (200kHz)
60º @ -10db
Wireless:
90º @ -10db (125kHz) |
| Depth Capability: |
600 ft DualBeam
120 ft Wireless depth |
| Wireless Operating
Range: |
120 ft |
| Target Separation: |
2 1/2 Inches |
| Temperature: |
Included in Transducer |
| Speed: |
Not Speed Capable |
| Power Input: |
10-20 VDC |
| Standard Transducer: |
Single Beam -XPT 9 20 T
and RF 45 |
| Transducer Mounting: |
Suction Cup and Wireless
Standard - Transducer Exchange outlines other options |
| Unit Mounting: |
Portable Case |
Unit Size
(Gimbal Mount): |
N/A |
|
