Poly-Planar MZ100 200 Watt Digital Amplifier

Digital Amplifier

The MZ-100 is a 4 channel 100 watt amp that uses digital signal processing. This unique feature allows multiple EQ settings as well as system integration with the RD-44 and MRD-70.

Features:

• 8 preset equalization settings for application configuration
• 4 channel output can power up to 4 speakers and 1 subwoofer
• DIN cable inputs for connection to RD44 direct or MRD-70 system
• Separate waterproof volume control
• Auxiliary input (RCA Type)

Specifications:

• Frequency response: 20Hz to 20KHz (Contoured response)
• SNR: 90dB
• THD: <1% Max. full power full load
• Max operating power: 45W /channel x 4
• RMS operating power: 25W/channel x 4
• Power consumption: 7A Max, full power driving 4 speakers @ 2 ohms

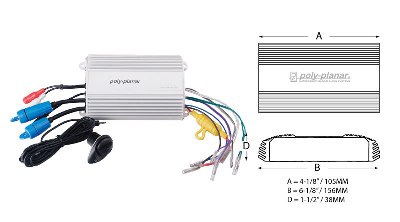

• Dimensions: 4.3"x 6.7" x 1.57" (110mm x 170mm x 40mm)
• Weight: .425kg
