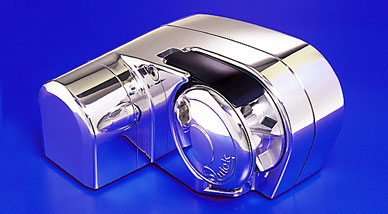

The Genius series perfectly suit the requirements of those who have little space below deck or on deck.
Compact and easy to install - guarantees top performance.
3-year warranty
Each Genius include one control panel, a reversible solenoid, a circuit breaker, a clutch handle and the owner manual.
| Model | Genius 600 |
| Motor power | 500W |
| Motor supply voltage | 12 V |
| Maximum pull | 150 lb |
| Maximum working load | 550lb |
| Working load | 190lb |
| Current absorption @ working load 1 | 40A |
| Maximum chain speed 2 | 48ft/min |
| Maximum chain speed @ working load 2 | 43ft/min |
| Chain size 3 | 1/4", 5/16" |
| Rope size | 1/2", 5/8" |
| Deck thickness | 0.8"-1.6" |
| Dimension on deck | 9.8"L x 8"W x 5.3"H |
| Weight | 23.1lb |
- after an initial period of use
- measured using gypsy for a 8 mm chain
- please specify chain size when ordering
|
