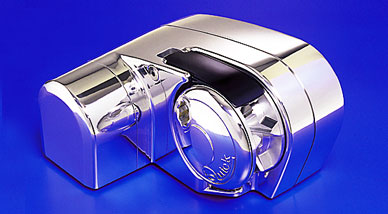

The Genius series perfectly suit the requirements of those who have little space below deck or on deck.
Compact and easy to install - guarantees top performance.
3-year warranty Each Genius include one control panel, a reversible solenoid, a circuit breaker, a clutch handle and the owner manual. | Model | Genius 1000 | | Motor power | 500W | | Motor supply voltage | 12 V | | Maximum pull | 2000 lb | | Maximum working load | 770lb | | Working load | 260lb | | Current absorption @ working load 1 | 85A | | Maximum chain speed 2 | 99ft/min | | Maximum chain speed @ working load 2 | 63ft/min | | Chain size 3 | 1/4", 5/16" | | Rope size | 1/2", 5/8" | | Deck thickness 4 | 0.8"-1.6" | | Dimension on deck | 9.8"L x 8"W x 5.3"H | | Weight | 23.1lb | - after an initial period of use
- measured using gypsy for a 8 mm chain
- please specify chain size when ordering
|
|
