Northstar NS3300 Autopilot Kit

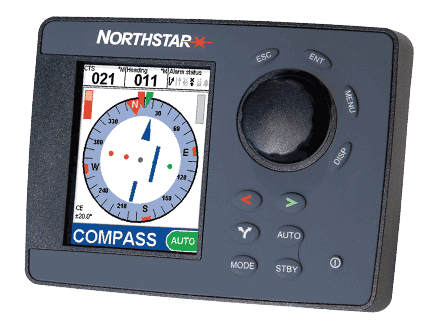

Northstar's 3300 Autopilot :
The Northstar 3300 autopilot is a powerful device packed with exciting new technology for enhanced utility and ease-of-use.

A bright clear screen and simple to follow graphic displays make using the 3300 effortless and the rate gyro ensures a stable course heading.

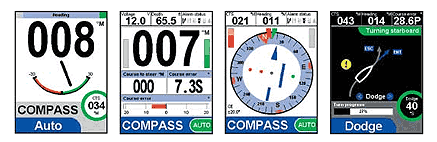

Basic Just the essentials Pilot   Traditional Numeric display makes existing users feel right at home   Compass Unique aeronautics-style display combines information for easy interpretation     Dodge Dodge and other actions represented by animated diagrams (Note: Night Mode screen shown)

Specifications :

GENERAL

• Rate gyro and compass included as standard equipment
• Multi display head capable
• 2 x NMEA inputs, 1 x NMEA output
• NavBus interface
• Compass, GPS and wind steering modes
• 3.8in TFT transflective daylight viewable color QVGA display
• Rotary input device (Control Dial)
• Dedicated dodge function keys
• Follow-up rudder drive mode
• Animated diagrams of autopilot actions such as dodge and tack
• Bi-color illuminated bezel for indicating important autopilot behavior
• Night-mode display option
• Calibration wizards

PHYSICAL

• 3.8 Inch Color QVGA transflective, daylight viewable Display
• 240 x 320 pixels (256 colors) display resolution
• Display unit dimensions W=160 x H=119 x D=62 (mm), W=6.29 x H=4.68 x D=2.44 (in)
• Supply voltage range: 8 V ~ 30 V DC / Nominal: 13.8 V / 27.6 V DC
• Current consumption @13.8 V: 360mA / 160mA (backlighting min.) Display unit only 0-50 Degrees Celcius operating temperature(Ambient, case temp can be higher) 8.0 ~ 30.0 V Battery voltage monitor (Not Calibrated)

Kit Includes:

• Display
• Core
• Pump
