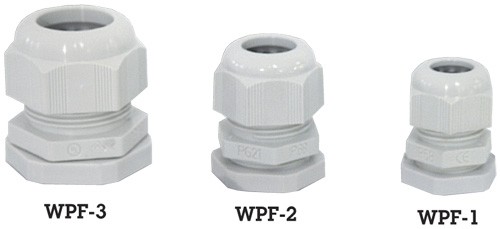

For complete waterproof assembly (IP68) use these compression fittings. Retaining nut secures fitting to enclosers, compression hub creates waterproof seal around wires. Various sizes are available in a wide range of cable diameters.
Model
Cable Diameter Range
Mounting Hole Diameter
EX Enclosure Knock-Out Size Ref.
WPF-1
.2?-.47?
.91" (22.5 mm)
PG-16
WPF-2
.35?-.71?
1.14" (29.0 mm)
PG-21
WPF-3
.55?-.98?
1.48" (37.5 mm)
PG-29
