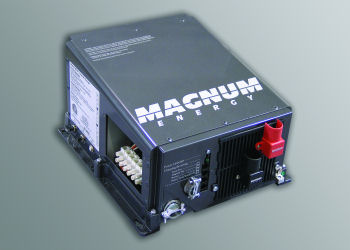

  Magnum ME3112 3100W Inverter 12V W/160A Pfc Charger
Click to enlarge

Magnum ME3112 3100W Inverter 12V W/160A Pfc Charger

Item #: MGNME3112




List Price:




In Stock - Ships the next business day.
No restocking fees on return.
Click to verify BBB accreditation and to see a BBB report.


Magnum ME3112 Inverter/Charger

Reliable Mobile Power from Magnum Energy.  Powerful, Easy-to-Use, & Cost Effective.

The ME Series Inverter/Charger from Magnum Energy is a new generation inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.

Safe and reliable: The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable.

Easy-to-install: Install the ME Series in four easy steps: simply connect the inverter?s output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter?s easy-to-reach terminal block, connect the batteries, and switch on the power.


You asked and Magnum listened. The ME Series Inverter/Charger is loaded with features:

  • Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger ? using only 15 amps per 100 amps versus 23 amps used by standard chargers.
  • Choices: The ME Series comes in three power models, allowing you to choose the model that is right for you.
  • Versatile mounting: Mount the ME Series on a shelf, bulkhead, or even upside down.
  • Lightweight: The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
  • Multiple ports: The ME Series provides multiple ports, including an RS485 communication port for network expansion, and a remote port.
  • Accessible design: The extra large AC access cover with terminal screw block and 360? DC connection terminals with covers make this inverter more accessible when it needs to be.
  • Convenient switches: The ME Series comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.
  • Expanded transfer relay: 60 Amp transfer service is available on all models.
  • Buy with ease: The ME Series is backed by a three-year (36-month) limited warranty.

Inverter Specifications

Input battery voltage range 9 - 16 VDC
Nominal AC output voltage 120 VAC
Output frequency and accuracy 60 Hz ? 0.005%
1 msec surge current (amps AC) 120
100 msec surge current (amps AC) 50
5 sec surge power (real watts) 6000
30 sec surge power (real watts) 4800
5 min surge power (real watts) 3950
30 min surge power (real watts) 3500
Continuous power output at 45? C 3100 VA
Rated input battery current 296.5 ADC
Inverter efficiency (peak) 90%
Transfer time 16 msecs
Search mode .2 ADC
No load (120 VAC output) 0.97 ADC
Waveform Modified Sine Wave

Charger Specifications

Continuous output at 45? C 160 ADC
Charger efficiency 85%
Power factor > .95
Input current at rated output (AC amps) 21

General Features and Capabilities

  • Transfer relay capability: 2 legs at 30 A for 120 V/30 A or 240 V/60 A service
  • Five stage charging capability: Bulk, Absorb, Float, Equalize, and Battery Saver?
  • Battery temperature compensation: With available temp sensor (battery temp 0 ? 50? C)
  • Remote inverter on/off switch: With available pigtail to connect to dry contact
  • Internal cooling: 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
  • Over current protection with two overlapping circuits
  • Over temperature protection on transformer, MOSFETS, and battery
  • Conformal coating on PCB?s for corrosion protection
  • Powder coated chassis & top for corrosion protection
  • Stainless steel fasteners for corrosion protection
  • Series stacking interface 120/240 V
  • Listings ETL Listed to UL/cUL 458, CSA C22.2 #107.1-01

Environmental Specifications

  • Operating temperature: -20? C to +60? C (-4? F to 140? F)
  • Nonoperating temperature: -40? C to +70? C (-40? F to 158? F)
  • Operating humidity: 0 to 95% RH non condensing

Physical Specifications

  • Dimensions (h x w x d): 13.75? x 12.65? x 8.0? (34.9 cm x 32.1 cm x 20.3 cm)
  • Mounting: Shelf (top or bottom up) or bulkhead (vents up)
  • Max operating altitude: 15,000? (4570 m)
