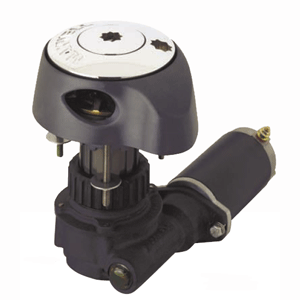

Maxwell Freedom RC800 Windless


Maxwell Freedom RC800 Windless
Click to enlarge


Item #: MAX RC800
Availability: Usually ships the next business day.
Price: $733.99



Features:
  • Maxwell's revolutionary design automatically feeds anchor rode into and out of the anchor locker allowing effortless handling of rope, chain or rope/chain rodes.
  • Sleek, captive on deck design for smooth, snag free operation.
  • Trouble free transition from rope to chain by means of an innovative tension arm system within a safer enclosed design.
  • Maxwell recommends the use of 8 plait nylon rope in conjunction with Maxwell's unique performance plate (supplied with winch) to help ensure trouble free performance.
  • High speed, jam free retrieval of rope and chain from remote control stations.
  • Dual direction, power up and down operation.
  • Simplified two piece installation without disassembly of windlass.
  • Alternative gearbox/motor positions accommodate virtually all installation situations.
  • Manual override using the emergency crank handle provided.
  • Marine-grade, hard anodised alloy housing finished in metallic charcoal.
  • Full disassembly capability of top works utilising handle provided and a screwdriver - no special tools required.
  • Heavy duty, dual direction motor, designed for marine winches.
  • Isolated ground type, with durable class F insulation. Easily removed for servicing.
  • Cone type clutch/brake mechanism permits manual "free fall" anchoring. Cone clutches, unlike dog clutches, provide smooth disengagement, ensuring safe operator control.
  • Sealed oil bath and marine-grade anodised alloy gearbox provides high efficiency output drive via precision worm and wormwheel.

    • Important: Maxwell windlasses must be used in conjunction with a chain stopper or snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system can also be used to secure the anchor in the fully raised position while under way.

    Standard Equipment

    • Circuit breaker/isolator panel (supplied with DC units only)
    • Dual direction solenoid pack
    • Up/down remote control panel
    • Performance plate
    Specifications
    Maximum Pull 364kg - 800 lbs
    Chain Speed (Normal Working) 33m/min - 108ft/min
    Rope Speed (Normal Working) 21m/min - 69ft/min
    Power Supply (DC) 12 or 24V
    Motor (Watts) 1000w
    Rope Size (Nylon) ( 3 strand or 8 plait) 14mm - 5/8" (8 plait recommended)
    Chain Short Link 8mm - 5/16"
    Net Weight 16.5kg - 36.3 lbs
