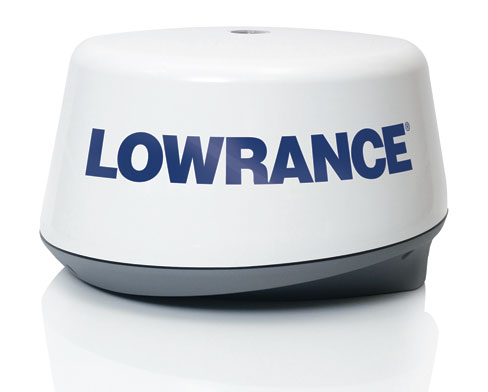

A revolutionary new advanced Broadband Radar technology is available for a range
of popular navigation systems, integrating superior radar performance with
state-of-the-art charting, echosounding and entertainment displays. Combine
straightforward installation (with an easy-to-route 13.5mm diameter scanner
cable), flexible antenna placement options and low power draw, and there is a
clear choice for every type of vessel.
Unparalleled Short Range Target Discrimination — Where it Matters Most
Lowrance's Broadband Radar provides amazing target resolution, even at an
unprecedented 1/32 nm range. Docks, channel markers, moored vessels and other
critical targets are displayed with clarity and separation, for added confidence
in close quarters. Broadband technology also eliminates the "main bang" of a
pulse radar — the obscured "dead zone" immediately around the vessel — which
interferes with close target detection.
Lowest RF Transmission for Safe, Flexible Installation
Because Lowrance Broadband Radar transmits at
1/20,000 the power of typical pulse radars (emitting 10 times less energy than
an average cell phone), the radome is safe to mount in locations never before
possible. In addition, the lowest DC power draw of any X-band marine radar makes
this system ideally suited for sailboats and other vessels with limited power.
Navigation in an InstantNo more waiting 2-3
minutes for a magnetron to warm up - 100% solid-state design provides InstantOn™
capability. When darkness falls or the fog rolls in, you will always be ready.
Ideal for sailboats wishing to save power, or boats at anchor not wishing to run
the radar continuously.
Compatible Products:HDS High Definition
System
RADAR
| Antenna Beam Width Horizontal |
5.2°+/-10% (-3dB width) ° |
| Antenna Beam Width Vertical |
30°+/-20% (-3dB width) ° |
| Antenna Rotation Speed |
24 rpm +/- 10% RPMs |
| Radar Noise |
6 dB |
| Radar Warm Up Time |
0 min |
| Radar Wind Resistance |
51 m/sec (Max:100 Knots) |
COMMUNICATIONS
| Transmitter Frequency |
X-band - 9.3 to 9.4Ghz |
| Transmitter Power Output |
100mW nominal |
| Data I/O Protocol |
High Speed Ethernet |
TECHNICAL / ENVIRONMENTAL
| Mounting |
Bolts: 4x30xM8 - 304 stainless steel |
| Height |
11 in \ 280 mm |
| Diameter |
19.2 in \ 488 mm |
| Weight |
16.31 lbs \ 7.4 kg |
| Humidity |
+35°C, 95% RH |
POWER
| Power Supply |
9V to 31.2Vdc (12/24 Volt systems) Reverse polarity
protection vDC
|
| Power Consumption |
17W (Typ.) @ 13.8Vdc |
| Power Consumption Standby |
1.6W (Typ.) @ 13.8Vdc – only 110ma |
OTHER
| Interconnection Cable |
10m standard with RJ45 thin custom (Max 30m) |
| Interface Heading |
NMEA 2000® with cable kit into display |
| Operating Temperature |
-25° to +55°C |
|
