Boatersland Marine > Trim Tabs > Lenco Parts > Lenco 12V 4 1/4" Stroke Extreme Duty Actuator with 6' Wire

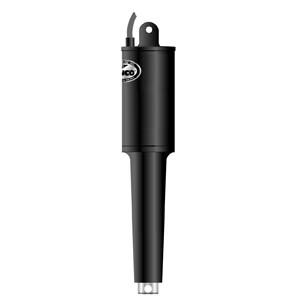

  Lenco 12V 4 1/4" Stroke Extreme Duty Actuator with 6´ Wire
Click to enlarge

Lenco 12V 4 1/4" Stroke Extreme Duty Actuator with 6' Wire

Item #: LEN15060-001



Quantity:

40%

List Price:

$431.87

Price:

$257.99



Flat Rate $10.95 Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

102 XD Actuator

Used with Troll n Tab Kits 2000 to present & various OEM Applications
5/16" (.79 cm) mounting hardware
Stroke: 4-1/4" (10.8 cm)
Length overall: 12-7/8" (32.70 cm)
Length pin to pin: 12-1/4" (31.11 cm)
Diameter (upper housing): 2-1/2" (6.35 cm)
Mounting hardware: 5/16" (.79 cm) or Delrin Pin (Part #15087-001)

Part #
#15060-001 (102-2) 12 Volt w/6' (1.83m) leads with Deutsch connectors and mounting hardware(replacement length)

  • Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
  • Corrosion proof Vandar mounts
  • Stainless steel ram won't flex, even under extreme loads
  • Double O-ring for maximum protection
  • Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches
  • Self-locking ballscrew locks into position and will not drift
  • Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
  • Tough, high-torque motor easily transfers 750 lbs
  • High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
  • Corrosion proof Vandar cap and mount, stands up to severe loads


Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!


Related Accessories:

Item # Description Price Order
LEN15087-001 Lenco Delrin Mounting Pins for 101 & 102 Actuator 2/PK  $8.99  Add to cart
