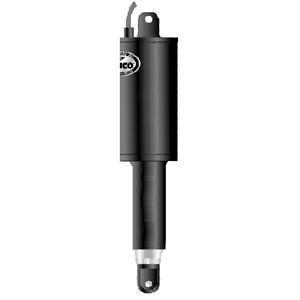

  Lenco 12V 2 1/4" Stroke Extreme Duty Actuator with 3/8" Hardware
Click to enlarge

Lenco 12V 2 1/4" Stroke Extreme Duty Actuator with 3/8" Hardware

Item #: LEN15056-001



Quantity:

Price:

$190.99



In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

101 XD Extreme Duty Actuator

Part # (Superseded #)
#15056-001 (101 XD-7) 12 Volt w/6' (1.83 m) leads with Deutsch connectors, and 3/8" (.95 cm) mounting hardware. Solid stainless steel billet end
Included in Extreme Duty Performance Kits, High Performance Trim Tab Kits and Super Strong Kits
Stroke: 2-1/4" (5.72 cm)
Length overall: 11-3/8" (28.89 cm)
Length pin to pin: 10-3/4" (27.31)
Diameter (upper housing): 2-1/2" (6.35 cm)

  • Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
  • Corrosion proof Vandar mounts
  • Stainless steel ram won't flex, even under extreme loads
  • Double O-ring for maximum protection
  • Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches
  • Self-locking ballscrew locks into position and will not drift
  • Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
  • Tough, high-torque motor easily transfers 750 lbs
  • High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
  • Corrosion proof Vandar cap and mount, stands up to severe loads


Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!


Related Accessories:

Item # Description Price Order
LEN15087-001 Lenco Delrin Mounting Pins for 101 & 102 Actuator 2/PK  $7.99  Add to cart
