- Compatible with all 2007* and later LCX, LMS, X and GlobalMap® Lowrance
models with 5-pin ethernet connector
- Connectivity between transducer and single head unit, or up to four
compatible head units using optional Navico Expansion Port-1

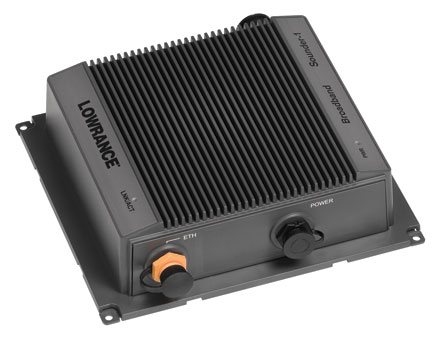

- Single Broadband Sounder-1 module connects to any Lowrance transducer:
Skimmer®, pod, shoot-thru and bolt-thru hull
- Automatic operation at any frequency selected: 50, 83 and 200 kHz
- Nominal output power 250W peak-to-peak / 31W RMS
- Analog output power equivalent 30,000W peak-to-peak / 3,750W RMS
- Tested sounding depths to 5,000' / 1525 m
Introducing the next generation of Lowrance fish-finding technology. This
unique software-driven sonar optimizer produces peerless echo clarity and
displays the most striking underwater definition ever achieved. It delivers
digitally-purified marking/separation of fish, structure, thermoclines and
bottom, while virtually eliminating surface and turbulent water clutter. It also
extends sounding depths to thousands of feet without loss of bottom readings.
For use with single Lowrance unit with 5-pin ethernet connector, or networked
with a wide choice of compatible Lowrance models, Lowrance Boradband Sounder
technology is the new standard in ultimate sonar performance.
TECHNICAL / ENVIRONMENTAL
Waterproof Standard
IPX7 standards
Width
8.3 in \ 210 mm
Height
2.3 in \ 57.6 mm
Depth
7.4 in \ 188 mm
Weight
1.82 lbs \ 0.825 kg
POWER
Power Supply
9.5 - 32 switched input power vDC
OTHER
Operating Temperature
-20º t0 +167º F (-28º to +75º C)
|
