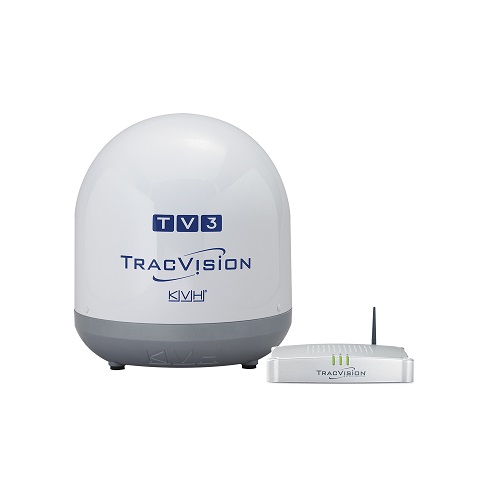

KVH TracVision TV3 North American System ConfigurationIt’s Easy! Install or Retrofit Today for Great TV Entertainment
With its single-cable design, compact 37 cm (14.5 inch) antenna, and
device-friendly user interface, the TracVision TV3 is a snap to install, set up,
and use. The DVB-S2 compatible TracVision TV3 is the perfect solution for
single- or multiple-receiver installations. In no time, you’ll be enjoying your
favorite television programming, right from your boat.
Small Marine Satellite TV System that’s Big on Built-in Features
A great choice for powerboats or sailboats frequenting cruising areas located
within 100 nautical miles offshore, the TracVision TV3 supports DIRECTV, DISH
Network, Bell TV, and circular and linear Ku-band regional services worldwide.
The IP-enabled TracVision TV-Hub includes built-in Ethernet and Wi-Fi for easy
interface with smartphones, tablets, smart TVs, and computers, giving you system
information at your fingertips.
Highlights
- 45 cm (18-inch) diameter antenna features proprietary RingFire™
technology for stronger signals, wider geographic coverage, and better
reception
- Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and
circular and linear Ku-band services worldwide
- Supports multiple receiver installations
- Low elevation angle for better tracking in northern latitudes
- Linear Universal Quad LNB configuration offers optional built-in GPS and
autoskew
- Tri-Americas LNB option for seamless TV throughout the Americas
- Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation,
and easy user interface for system information from any smartphone, tablet,
smart TV, or computer
- HDTV compatible (Ku-band services only)
- Integrated Single Wire Multiswitch (SWM-8) built into belowdecks TV-Hub
supports up to 8 DIRECTV receivers
- Single coaxial cable for power, data, and video enables easy
installations and retrofits
- DVB-S2 compatible
- Advanced inertial-based stabilized search for fast satellite acquisition
- High performance tracking with advanced algorithms for crystal-clear
television picture in heavy seas
- Built-in worldwide satellite library
- IP AutoSwitch option for multiple receiver installations – for simple
auto-switching on Dish Pro and DiSEqC-compatible services
IP AutoSwitch
IP AutoSwitch for multiple receiver installations delivers simple
auto-switching on Dish Pro and DiSEqC-compatible services so you can easily
access the channels and programs you want to watch – even when they are not on
the same satellite.
Complementary Systems
Complement your KVH TracVision satellite television system with a KVH
TracPhone V-IP satellite communications system for fast and reliable satellite
Internet and VoIP services. TracPhone V3-IP, V7-IP, and V11-IP are designed
exclusively for KVH’s mini-VSAT Broadband network, the world’s no. 1 maritime
VSAT service.
TracVision TV-Hub
The innovative TracVision TV-Hub integrates the advanced functionality of the
TV-series system into one streamlined unit:
- IP-enabled antenna control unit with Ethernet connection and built-in
Wi-Fi interface allows access to system information from any Wi-Fi device
- Automatic satellite switching makes it easy to access all programming
and local channels wherever you travel, and with whatever service you use
- Built-in SWM-compatible technology supports DIRECTV programming
- Built-in DISH Pro output supports DISH Network and Bell TV service
- Built-in DiSEqC protocol supports linear TV services around the world
- Two output ports provide the flexibility to use legacy receivers and
expand SWM capability
- Status indicators quickly convey information about antenna function and
power
- 10-30 VDC input provides power to the TV-Hub, which in turn provides
power to the antenna
- NMEA 0183/2000 input for heading and GPS enable fastest satellite
acquisition
RingFire Technology
KVH’s proprietary RingFire technology is a remarkable breakthrough in antenna
design, fusing precisely shaped, tuned parabolic dish antennas with
custom-designed, dual-mode feed tubes and uniquely modified LNBs. RingFire
technology provides unmatched illumination of the reflector resulting in signal
strengths comparable to competitors’ larger antennas. This means that with
TracVision, you'll enjoy wider geographic coverage and better reception than
with competing antennas, even in extreme weather.
Versions
North American System Configuration KVH Part Number Circular: 01-0368-07
EMEA/Asia, Brazil System Configuration KVH Part Number Linear Universal Single:
01-0368-02 Linear Universal Dual: 01-0368-09
Specifications
Description |
A compact 37 cm (14.5-inch) antenna for powerboats or sailboats
frequenting cruising areas located within 100 nautical miles offshore |
Satellite Coverage Regions |
Worldwide |
Compatible Satellite TV Services |
Most Ku-band regional services worldwide |
Antenna Dish Diameter |
37 cm (14.5") |
Antenna Unit Diameter x Height/Weight |
39.4 cm x 44.7 cm (15.5" x 17.6") /
7.7 kg (17 lbs)
Linear Universal Dual: 9.1 kg (20 lbs) |
Minimum EIRP |
50 dBW (Ku-band) |
HDTV Compatible |
(requires a compatible HD receiver, HD-ready television, and
subscription)
Yes (Ku-band services) |
Skew Control |
Manual |
LNB Types Available
(polarization/output) |
Linear Universal Single
Linear Universal Dual
Circular |
Tracking Technology |
High-Performance (HP) tracking |
User Interface |
TV-Hub web interface |
Tri-Americas LNB Compatible |
No |
Elevation/Azimuth Range |
+10° to +80°/Continuous
Linear Dual: +10° to +80°/720° |
System Power |
10-30 VDC
42 watts nominal |
Antenna Operating Temperature |
-25°C to +55°C
(-13°F to +131°F) |
Antenna Survival Temperature |
-25°C to +70°C
(-13°F to +158°F) |
|
