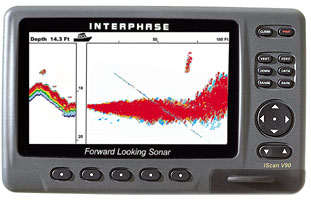

Interphase's new iSCAN V90 Forward Looking Sonar,
based on Interphase's proven and award winning phased-array technology, is the
ideal navigation aid for cruisers, sport fishermen and many other types of
recreational and light commercial vessels who want to "see what's ahead".
Sporting a wide sunlight-viewable color LCD, this compact unit allows boaters to
see the bottom ahead and submerged objects up to 1,200 feet forward of the
vessel's bow.
With its sweeping vertical scan the Interphase
iScan V90 continuously updates the forward looking display to show changing
water depths, shoals, reefs, schools of bait, bottom structure and other
suspended objects like fish. It's small easy-to-install phased-array transducer
uses no moving parts and steers a 12-degree acoustic beam, in a vertical plane,
from the surface ahead and down to 600 feet below.
- Hi Power for Forward Range up to
1,200 feet
- Full Screen Vertical and Horizontal
Forward-Looking Displays
- Split Screen Displays Showing
Downlooking Depth or Large Digital Data
- Easy One-Touch User Interface
- NMEA 0183 Depth Output
- NMEA 0183 Ground Speed/Temp and lat/lon
inputs
- "Power Off" Memory Remembers all
Settings
- Quick-Disconnect Mount
- Keel Offset Adjustment
- Adjustable Display Backlight
|
- Backlit Keypad
- Video Input for Camera, VCR or DVD
- Forward Range and Depth Alarms
- External Alarm Capabilities
- Three Selectable Color Schemes for
Night, Sun and Normal Viewing
- Scan Sector Width and Direction
Adjustments
- Simple Second Station Connection
- User Selectable Languages and Units
|
Built to Work, Built to Last
- 480 x 234 Pixels
- Adjustable CCFL Backlight
- Wide (3.41"H x 6.1"W) TFT Sunlight
Viewable Color LCD
- Flush Mount Template Included
- Weight of Display Approx. 3.5lbs.
- Fog and Waterproof
- Over 3,000 W Peak to Peak Power
- 200kHz Operation
- 8 Ch. Phased Array Transducer, No
Moving Parts
- 12 Degree Beam Angle
- Compact Dimensions:
9.4"W x 5.9"H x 3.25"w
|
- Time Variable Gain Receiver
- 10 to 16 VDC, less than 1.0Amp.
- Sunlight, Normal and Night Colors
- Split Screen Forward Vertical and
Downlooking Display
- Split Screen Forward Vertical and
Large Digital Data Display
- Full Screen Vertical and Setup
Displays
- Full Downlooking Display w/Zoom
|
|
