Introducing the industry's first "black-box" forward looking sonar with both
VGA and video outputs. The new SE-200 Sonar Engine adds scanning sonar
capability to today's popular multifunction and large panel displays and easily
turns most video-capable chart plotters, radars, and other multifunctional
displays into full-featured forward-looking sonars.
Designed to work with video-enabled multifunction displays from companies
such as Raymarine, Garmin, Navman, Northstar, Simrad and Furuno, the versatile
SE-200 Sonar Engine goes an important step further, and also works with large
VGA flat panel displays including products from AmbientNav, VEI, Nauticomp, Big
Bay Technologies, Computech, Vartech Systems and many others - even large
inexpensive consumer computer monitors.
Interphase's new SE-200 Sonar Engine includes the phased array transducer(s),
a small module that houses the sophisticated electronics and a keypad which can
be located close to a remote display. For custom installations, individual
components can be selected, including an optional Interphase color VGA display
with integral keypad. The system can easily support multiple displays and
keypads and owners can even mix several video, VGA and Interphase displays using
a single SE-200 Sonar Engine
-all operating at the same time!

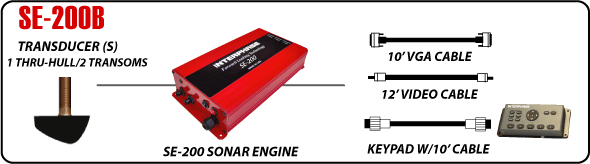

SE-200B SONAR ENGINE- Transducer(s) (One Thru-Hull or Two Transom
mount) for both 90º Vertical and 90º Horizontal Scans
Each SE-200B Sonar Engine includes the “black-box” Engine, transducers,
remote keypad and basic cabling as shown above. The SE-200B Sonar Engine scans a
forward- looking beam both vertically and horizontally over a 90 degree segment
using a single dual axis thru-hull transducer. In the vertical mode the beam
scans from the surface ahead to the bottom below, similar to the graphic at
left. This mode is particularly useful navigating unfamiliar waters, detecting
coral, rock pinnacles and other submerged objects directly ahead of the vessel.
|
