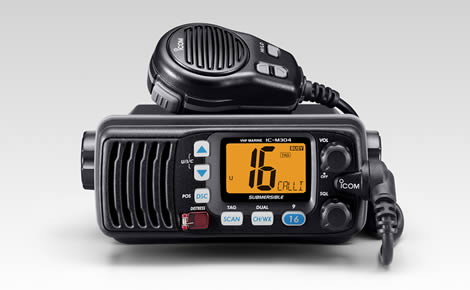

On Sale! Save 5%! Icom quality at an entry-level price. IPX7 submersible construction, NMEA
third-party GPS connection, large LCD with big channel numbers and names, great
audio quality, DSC. Easy optional flush-mount installation.
Compact and submersible
Equivalent to IPX7 (1m depth for 30 minutes, except cables).
Large easy-to-see LCD
Shows full size channel number with 4-step backlighting.
Built-in DSC that meets RTCM SC-101
For distress calls, or for position request/position report.
New Force5Audio™ speaker
Delivers impressive audio output with powerful bass.
Favorite channel function
Offers quick channel selection from the microphone up/down buttons.
AquaQuake draining function
The vibrating “buzz” sound clears water away from the speaker grill.
Weather channel with weather alert
Listen for important weather broadcasts
Dualwatch and Tri-watch functions
Monitors Ch.16 and/or call channel, while using another channel.
Specifications
| General |
| Frequency range
Tx
Rx |
: |
156.025–157.425MHz
156.050–163.275MHz |
| Usable channels |
: |
USA, CAN, INT, WX channels |
| Type of emission |
: |
16K0G3E, 16K0G2B |
| Power supply |
: |
13.8V DC ±15% |
Current drain (at 13.8V DC)
Tx
Rx |
: |
5.5A (at 25W output)
1.5A (at AF max.) |
| Operating temperature range |
: |
–20°C to +60°C;
–4°F to +140°F |
| Antenna impedance : |
: |
50Ω (SO-239) |
Dimensions (W×H×D,
projections not included) |
: |
153×67×133mm ;
61⁄32×25⁄8×51⁄4
in. |
| Weight (approx.) |
: |
825g; 1.8lb |
| NMEA formats |
: |
NMEA version 2.0 or 3.01
RMC, GGA, GNS, GLL |
| Transmitter |
| Output power |
: |
25W or 1W (at 13.8V DC) |
| Modulation system |
: |
Variable reactance frequency modulation |
| Max. freq. deviation |
: |
±5kHz |
| Frequency error |
: |
±10ppm |
| Spurious emissions |
: |
Less than –70dBc (at 25W) |
| Adj. channel power |
: |
More than 70dB |
| Audio harmonic distortion |
: |
Less than 10% (at 60% dev.) |
| Residual modulation |
: |
More than 40dB |
| Receiver |
| Intermediate freq. |
: |
1st 21.7MHz, 2nd 450kHz |
| Sensitivity |
: |
0.22μV typical at 12dB SINAD |
| Squelch sensitivity |
: |
Less than 0.22μV |
| Adj. Ch. selectivity |
: |
More than 70dB |
| Spurious response |
: |
More than 70dB |
| Intermodulation |
: |
More than 70dB |
| Hum and noise |
: |
More than 40dB |
| Audio output power |
: |
4.5W typical at 10%
distortion with a 4Ω load |
|
