Details:

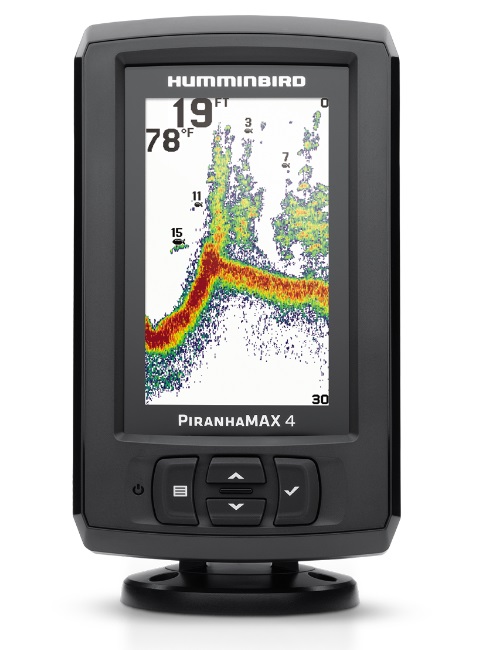

Humminbird PiranhaMAX 4 Fishfinder

The PiranhaMAX 4 features a 256 color 480V X 272H, 4.3" display with 2400 watts PTP power output with Dual Frequency sonar.

Technology

Dual Beam

200/455 kHz Dual Frequency Sonar

Tilt and Swivel

Tilt and Swivel Mounts -- Quickly adjust your viewing area angle

Specifications

Display Size - Diagonal	4.3"
Display Pixel Matrix	480H x 272V
Display Type	Color TFT
Display Colors Grayscale	256 Colors
Sonar Standard	Dual Beam
Standard Sonar Coverage	28° & 16° @ -10db
Standard Sonar Frequency	200/455 kHz
Target Separation	2.5"
Power Output RMS	300 Watts
Power Output Peak to Peak	2400 Watts
Depth Capability	600 feet
Temperature	Built-in Transducer
Speed	Not Supported
Backlight	Yes
Unit Size - Gimbal Mount	3.914"W x 7.335"H x 3.621"D
Mount A Type	Gimbal Mount
Unit Size - In Dash Mount	3.914"W x 6.770"H x 2.600"D
Mount B Type	In Dash Mount
Mounting Options	Gimbal or Optional In-Dash
Transducer Standard	XNT 9 28 T
Transducer Mounting	Inside Hull or Transom
Power Input	10.8-20 VDC
Power Draw	180mA

Did you Know?

ALL products we sell are factory new and come with the full Manufacturers Warranty!

Related Accessories:

Item #	Description	Price	Order
HUM720096-1	Humminbird EC-M10 Extension Cable 10 Foot	$43.99
HUM710236-1	Humminbird XNT-9-28T Transom Mount Transducer	$76.99
