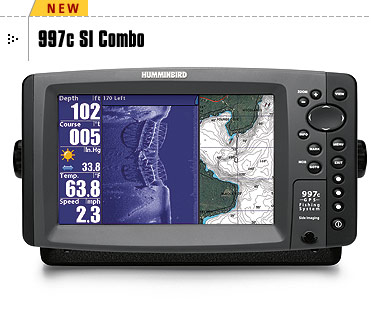

Humminbird 997c SI Fishfinder GPS Combo



Item #: HUM997C
Availability: Usually ships the next business day.
Model:
Price: $1,783.99



The 997c SI delivers high definition breakthrough Side Imaging sonar for picture-like images of the bottom, precision GPS Chartplotting, and a no-compromise ultra wide, high resolution 8" screen

Features
  • Networkable, High Definition Side Imaging Fishing System
  • New High Definition 600kHz Side Imaging provides even better image clarity
  • Brilliant, 8" sunlight viewable color display with 480V x 800H resolution
  • Revolutionary 600kHz Side Imaging sonar technology with 180º of coverageand dual frequency 83/200kHz sonar in one transducer
  • 16 channel WAAS/EGNOS GPS receiver included
  • Built-in UniMap™ of the USA coastline, inland lakes and rivers to 30 meters per pixel resolution
  • Compatible with Navionics Platinum Charts featuring photo overlays, 3D viewing, and port approach ariel photos
  • Tidal graphs and port services information available with optional Navionics Gold Charts
  • 4000 Watts PTP, 500 Watt RMS Standard; 8000 Watts PTP, 1000 Watt RMS Maximum Power Output*
  • Two memory card expansion slots to save Screen Snap Shots and view optional cartography
  • Dual microprocessors, graphics co-processor and triple channel sonar transmitter/receiver deliver fast, smooth operation
  • Sonar/chart recording to SD card and on-screen playback
  • Full screen chartplotter, 3D bird's eye view chartplotter and split screen sonar/chart with adjustable split
  • Programmable view presets access important screens with one touch
  • Plug & Play compatibility with InterLink Network Connection, CannonLink Downrigger Control, WeatherSense® Barometric Pressure, and Wireless Sonar Link Fishing System Modules
  • In-dash or Gimbal mount.
  • Expandable & upgradeable Fishing System
Additional Features
  • Fresh and saltwater set up options for optimal performance in any environment
  • Accelerated Real Time Sonar™ operates at up to 40 times per second to instantly capture the action under the boat
  • X-press™ menus place most important setting at your fingertips
  • Freeze Frame pauses the sonar scroll for detailed inspection of the screen
  • Instant Image Update immediately shows the results of setting changes for the most accurate fine tuning
  • Sonar Echo Enhancement™ technology is so sensitive it’ll track a jig to over 70ft and separate targets within 2 ½ inches
  • Man Overboard Function quickly adjust the boat track back to a specific spot with the touch of a button
  • Fully gasketed waterproof design and it floats
  • Selectable large digit screen for easy-to-read number display
  • Backlight for night viewing
  • TripLog with distance, elapsed time, and average speed
  • Totally automatic operation or totally manual operation with upper and lower range control
  • Temperature graph overlay and audible temperature alarm along with One-touch Zoom with 2x, 4x, 6x, and 8x zoom levels
  • Adjustable chart speed and feature memory retains your settings
  • Water surface temperature included in transducer, speed paddlewheel included
  • PC Connection capability to save waypoints, and upgrade internal software
  • Optional 200/50kHz transducer available for deep water applications and depths to 3000 feet
  • One-year limited warranty
  • Assembled in U.S.A.
Specifications
Fishing System Network Capabilities: InterLink, CannonLink, Wireless Sonar Link, WeatherSense Barometric Pressure and PC Connection Kit
Display Size: 8" Diagonal
Display Matrix: 480V x 800H
Display Type: 256 Color TFT, Sunlight Viewable
Power Output
(RMS):
750 Watts (200kHZ),
1000 Watts (50kHz)*
Power Output
(Peak to Peak):
6000 Watts (200kHz),
8000 Watts (50kHz)*
Operating Frequency: 200kHz, 83kHz 455kHz & 600kHz
(50kHz with optional transducer)
Sonar Coverage: 83kHz: 60° @ -10db
200kHz: 20° @ -10db
455kHz: (2) 86° @ -10db
600kHz: (2) 72° @ -10db
(180º Total Coverage)
Depth Capability: Side Imaging:150 Feet Down, 240 Feet to Each Side;
DualBeam PLUS:1500 Feet w/Standard Transducer,3000 Feet w/Optional 50/200kHz Transducer
Target Separation: 2 1/2 Inches
Temperature: Included in Transducer
Speed: GPS Speed Included
Power Input: 10-20 VDC
Standard Transducer: Side Imaging/DualBeam PLUS - XHS 9 HDSI 180 T
Transducer Mounting: Transom Mount Standard - Contact Hummingbird for Transducer Exchange
Unit Mounting: Gimbal or In-Dash
Unit Size
(Gimbal Mount):
11 1/4" W x 6 3/4" H x 4 1/4"D
Unit Size
(In-Dash Mount):
10 3/4” W x 6” H x 1 3/8” D; Required Minimum 3” Behind dash clearance
Communication: NMEA O183 Data Output, Fishing System Network, High Speed Ethernet
GPS Receiver: 16 Channel External GPS WAAS/EGNOS
Waypoints, Routes & Tracks: 3000 Waypoints, 50 Routes, 50 Tracks with 20,000 Points Each
Cartography: Built-in 30 meter UniMap; Optional Navionics Gold, HotMaps Premium or Platinum on MMC or SD Card
Available Models
  • 997c SI Combo
  • NVB - 997c SI Combo NVB - Navionics Gold and HotMaps Premium pre-loaded
