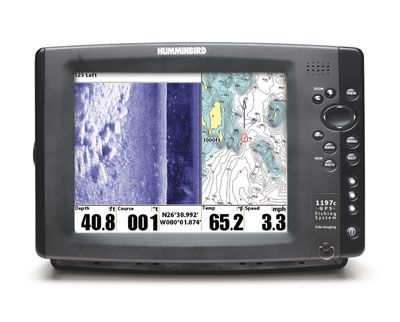

Humminbird 1197C SI Fishfinder/GPS Combo


Humminbird 1197C SI Fishfinder/GPS Combo
Click to enlarge


Item #: HUM1197C
Availability: Usually ships the next business day.
Model:
Price: $2,499.99



The 1197c SI Combo features a massive 10.4" display, Side Imaging and DualBeam PLUS sonar with up to 8000 Watts PTP power output, GPS Chartplotting with built-in UniMap, and advanced Fishing System capabilities

Advanced Sonar Features

  • Freeze Frame with ability to Mark Structure on Sonar
  • Instant Image Update
  • Real Time Sonar RTS Window
  • Selective Fish ID
  • Sonar Echo Enhancement
  • Sonar Recording
  • Sonar Snapshot
  • Split Screen Zoom
  • TrueArch Technology
  • Wide Narrow Cone Split Screen

User Friendly Technology

  • Custom Digital Readout Selection
  • Custom View Selections
  • Large Digits View
  • Selectable Background
  • Temperature Alarm
  • Temperature Graph
  • Triplog
  • View Preset Keys
  • X Press Menu System
Display
  • 10.40" diagonal
  • 600V X 800H
  • 4:3 Color TFT
Memory
  • Waypoints: 3,000 ft.
  • Routes: 50 ft.
  • Tracks: 50 w/20,000 points each ft.
Sonar DualBeam PLUS
  • 200 kHz / 20˚ @ -10db
  • 83 kHz / 60˚ @ -10db
  • Depth: 1500 ft.
  • (3000 ft with optional 200/50 kHz tranducer for deepwater use)
HD Side Imaging
  • 455 kHz / (2) 86˚ @ -10db
  • 800 kHz / (2) 55˚ @ -10db
  • Depth: 150 ft.
180˚ total coverage

Power Output

  • 1000 Watts (RMS)
  • 8000 Watts (Peak-to-Peak)
GPS Features
  • 16 Channel GPS
  • Trackplotting
  • Chartplotting
  • GPS Speed
  • Humminbird UniMap
  • Navionics Value Bundle (optional)
  • Navionics Platinum (optional)
Network Modules
  • WeatherSense (optional)
  • CannonLink (optional)
  • InterLink (optional)
Display Size: 10.40" diagonal
Display Pixel Matrix: 600V X 800H
Display Type: 4:3 Color TFT
Display Colors/Grayscale: 65,000 Colors
DualBeam PLUS
Sonar Coverage
  • 200 kHz / 20˚ @ -10db
  • 83 kHz / 60˚ @ -10db
HD Side Imaging
Sonar Coverage
  • 455 kHz / (2) 86˚ @ -10db
  • 800 kHz / (2) 55˚ @ -10db
Sonar Optional: QuadraBeam PLUS
Target Separation: 2.5 inches
Power Output (RMS): 1000 Watts (RMS)
Power Output (Peak to Peak): 8000 Watts (Peak-to-Peak)
Temperature: Included
Speed: GPS Speed Included
Backlight: Yes
Waterproof: Yes
Mount: In-dash
Unit Size: 13.1" W x 9 .3" H x 2.9" D
Mount: Gimbal
Unit Size: 13.1" W x 8.8" H x 2.9" D
Transducer - Standard: XHS-9-HDSI-180-T
Transducer Mounting: Transom
Power Input: 10-20 VDC

Available Models:

COMBO - 1197C  with Transom mount transducer
CHO - 1197C - No Transducer
NVBCHO - 1197C with Navionics Gold and HotMaps Premium Charts pre-loaded, NO Transducer
NVB - 1197C - with Transom mount transducer and Navionics Gold and HotMaps Premium Charts pre-loaded
