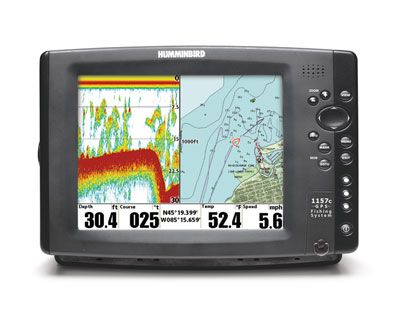

Humminbird 1157C Combo Fishfinder PlotterThe 1157c Combo features a massive 10.4" display, DualBeam PLUS sonar with up
to 8000 Watts PTP power output, GPS Chartplotting with built-in UniMap, and
advanced Fishing System capabilities. Includes unit cover and in-dash mounting
kit
ADVANCED SONAR FEATURES
- Freeze Frame with ability to Mark Structure on Sonar
- Instant Image Update
- Real Time Sonar RTS Window
- Selective Fish ID
- Sonar Echo Enhancement
- Sonar Recording
- Sonar Snapshot
- Split Screen Zoom
- TrueArch Technology
- Wide Narrow Cone Split Screen
USER-FRIENDLY TECHNOLOGY
- Custom Digital Readout Selection
- Custom View Selections
- Large Digits View
- Selectable Background
- Temperature Alarm
- Temperature Graph
- Triplog
- View Preset Keys
- X Press Menu System
Display
- 10.40" diagonal
- 600V x 800H
- 4:3 Color TFT
Memory
- Waypoints: 3,000 ft.
- Routes: 50 ft.
- Tracks: 50 w/20,000 points each ft.
SonarDualBeam PLUS
- 200 kHz / 20˚ @ -10db
- 83 kHz / 60˚ @ -10db
- Depth: 1500 ft.
- Sold with or without transducer. Select below
- (3000 ft with optional 200/50 kHz tranducer for deepwater use)
Power Output
- 1000 Watts (RMS)
- 8000 Watts (Peak-to-Peak)
GPS Features
- 16 Channel GPS
- Trackplotting
- Chartplotting
- GPS Speed
- Humminbird UniMap
- Navionics Value Bundle (optional)
- Navionics Platinum (optional)
Network Modules
- WeatherSense (optional)
- CannonLink (optional)
- InterLink (optional)
|
Display Size: |
10.40" diagonal |
|
Display Pixel Matrix: |
600V x 800H |
|
Display Type: |
4:3 Color TFT |
|
Display Colors/Grayscale: |
65,000 Colors |
|
DualBeam PLUS |
|
Sonar Coverage |
- 200 kHz / 20˚ @ -10db
- 83 kHz / 60˚ @ -10db
|
|
Sonar Optional: |
QuadraBeam PLUS |
|
Target Separation: |
2.5 inches |
|
Power Output (RMS): |
1000 Watts (RMS) |
|
Power Output (Peak to Peak): |
8000 Watts (Peak-to-Peak) |
|
Temperature: |
Included |
|
Speed: |
GPS Speed Included |
|
Backlight: |
Yes |
|
Waterproof: |
Yes |
|
Mount: |
In-dash |
|
Unit Size: |
13.1" W x 9 .3" H x 2.9" D |
|
Mount: |
Gimbal |
|
Unit Size: |
13.1" W x 8.8" H x 2.9" D |
|
Transducer - Standard: |
XNT-9-20-T |
|
Transducer Mounting: |
Inside Hull or Transom |
|
Power Input: |
10-20 VDC |
Available Models:
COMBO - 1157C with Transom mount transducer
CHO - 1157C - No Transducer
NVBCHO - 1157C with Navionics Gold and HotMaps Premium Charts pre-loaded,
NO Transducer
NVB - 1157C - with Transom mount transducer and Navionics Gold and
HotMaps Premium Charts pre-loaded
|
