  Hubbell M5100C7R 100A 480V Female Connector Body
Click to enlarge

Hubbell M5100C7R 100A 480V Female Connector Body

Item #: HUBM5100C7R



Quantity:

45%

List Price:

$951.78

Price:

$520.99



$5.00 Shipping Available!


More coming soon - Pre-order today.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

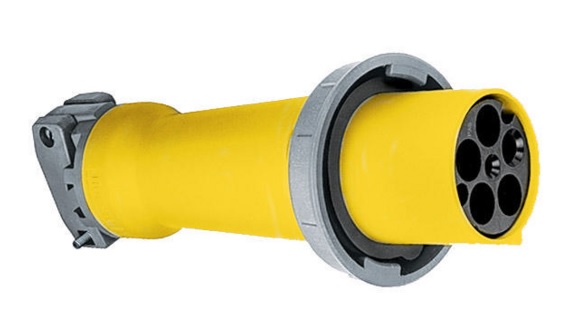

Hubbell M5100C7R 5-Wire 100 Amp 480 Volt Female Connector Body

Model: M5100C7R
  • Insulated non-metallic housing
  • Self-closing gasketed cover
  • Color coded housings for easy identification

Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow

Specifications
Number Of Poles4
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating100
ConnectivityPressure Screw Terminal
Current Rating100
Voltage RatingThree Phase Y 277 VAC
Three Phase Y 480 VAC
ConductorRange#3AWG to #1/0AWG
Number Of Wires5-Wire
Number of Conductors5-Wire Grounding
Mates withM5100B7R
