Details: |

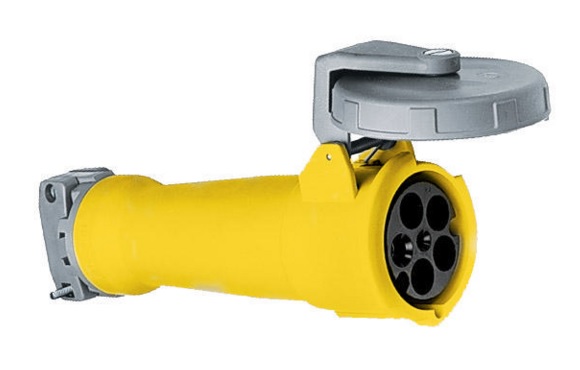

Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector Body Model: M5100C7
- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow Specifications
Number Of Poles | 4 | Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. | Amperage Rating | 100 | Current Rating | 100 | Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC | ConductorRange | #4AWG to #2AWG | Number Of Wires | 5 | NumberOfConductors | 5-Wire Grounding | Mates with | M5100P7 |
|
|
Did you Know?
ALL products we sell are factory new and come with the full Manufacturers Warranty! |
|
|
