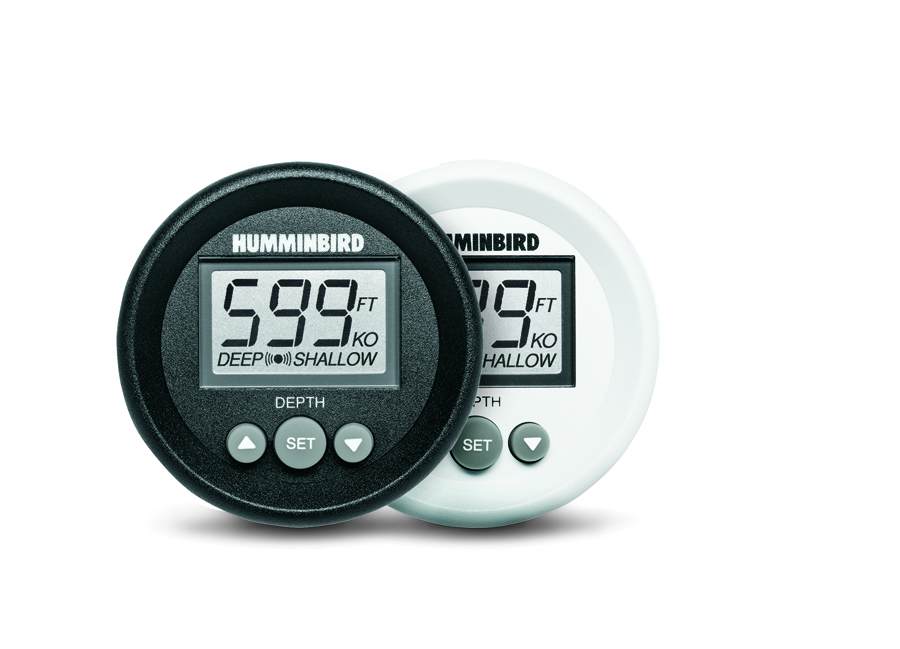

Humminbird HDR610 Depth Gauge

Key Features:

• Reliable Digital Depth for all Boat Users
• Tracks Bottom Up to 70 MPH
• Includes White and Black Color Face Plates and Bezels
• Easy to Install into Existing 2 1/8 inch gauge opening
• Wires to Ignition Switch for Auto Power On
• Rubber Buttons for Greater Reliability
• Backlight for Use at Night
• Shallow and Deep Depth Alarms
• Reads in Feet, Meters and Fathoms
• Display: 1 1/4" Diagonal, High Contast FSTN
• Transducer Standard: Single Beam
• Transducer Coverage(s): 20ø @ -10db
• Operating Frequency(s): 200 kHz
• Power Output: 1600 Watts Peak-to-Peak, 200 Watts RMS
• Depth Capability: 600 feet
• Target Separation: 2 1/2 inches
• Temperature: Not Capable
• Speed: Not Capable
• Power Input: 10-20 VDC
• Unit Mounting: In-Dash
• Unit Size Installed (In-Dash): 2.42" D x 4.75"
• Transducer Mounting: Transom Mount
