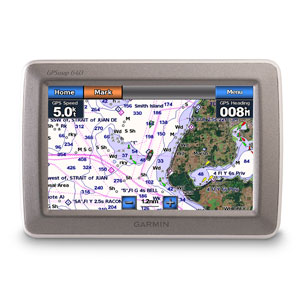

With the Garmin GPSMAP 640, you’ll get a full-featured marine chartplotter
and an on-the-road navigator that comes ready to go with preloaded BlueChart® g2
data and City Navigator NT road maps for North America. The GPSMAP 640 comes
standard with a high-sensitivity GPS receiver and brilliant, high-resolution
touchscreen display so you’ll always know the way whether you’re on land or at
sea.
Powerful and Portable
Featuring a marine and an automotive mode, a high-sensitivity GPS receiver,
and a rugged case with waterproof (IPX7) design, the GPSMAP 640 is ready for
your next outing. The GPSMAP 640 effortlessly shifts gears between marine and
automotive modes. When supported by the marine mount, you’ll have at-a-glance
access to your marine data. And when placed in the automotive mount, the
automotive mode is automatically activated and the GPSMAP 640 becomes a robust
street navigator.
Designed to Shine
With a brilliant 5.2-inch WVGA touchscreen display, and an intuitive
interface, you’ll have everything you need to navigate with confidence. The
GPSMAP 640 comes preloaded with BlueChart g2 data and other surface features as
well as City Navigator NA maps that include coverage maps for the United States,
Puerto Rico and select parts of Canada.
Stay in the Know
The GPSMAP 640 can receive XM WX satellite weather data in marine mode and XM
NavTraffic information in automotive mode with optional GXM 40 antenna and XM
subscription. With all that information at your fingertips, you can avoid bad
weather at sea or traffic tie-ups on the road. The GPSMAP 640 also supports XM
audio so you’ll always have music to enjoy while you’re on the go.
By Sea
In marine mode, the GPSMAP 640 brings you tides and currents, depth contours,
navaids, port plans, marine services and points of interest (POIs) via preloaded
BlueChart g2 marine data. And with optional BlueChart g2 Vision cards, you’ll
get 3D ‘mariner’s eye view’ above the waterline and ‘fish eye view’ below the
waterline. You’ll also benefit from Auto Guidance technology that searches chart
data to suggest the best passage. The GPSMAP 640 is also NMEA 0183 compliant, so
it can be easily added to an existing marine network.
By Land
In automotive mode, the GPSMAP 640 announces street names with spoken
turn-by-turn directions pulled from the preloaded City Navigator NT road maps
for North America. And route planning has never been easier. Whether you’re
searching for boat shops or bait shops, you’ll be able to plan the quickest and
most efficient route. You can also create custom points of interests (POIs) and
set up proximity alerts to let you know what’s in your path as you travel down
the road.
Physical & Performance:
|
| Unit dimensions, WxHxD: |
5.9"W x 4"H x 1.9"D (15.0 x 10.2 x 4.8
cm) |
| Display size, WxH: |
4.5"W x 2.7"H (11.4 x 6.9 cm); 5.2" diag
(13.2 cm) |
| Display resolution, WxH: |
800 x 480 pixels |
| Display type: |
WVGA |
| Weight: |
17.3 ounces (490.4 g) |
| Battery: |
rechargeable lithium-ion |
| Battery life: |
up to 9 hours |
| Waterproof: |
yes (IPX7) |
| Antenna: |
internal |
| NMEA input/output: |
NMEA 0183 |
| RoHS version available: |
yes |
Maps & Memory:
|
| Basemap: |
yes |
| Preloaded maps: |
yes (coastal and detailed road maps)
|
| Ability to add maps: |
yes |
| Built-in memory: |
internal solid state |
| Accepts data cards: |
SD™ card slot |
| Waypoints/favorites/locations:
|
1500 (marine mode); 1000 (automotive
mode) |
| Routes: |
50 (marine mode); 10 (automotive mode)
|
| Track log: |
10,000 points, 20 saved tracks (marine
mode); 10,000 points, no saved tracks (automotive mode) |
Features:
|
| Garmin radar compatible: |
no |
| Garmin sonar compatible: |
no |
| CANet® compatible: |
no |
| Garmin Marine Network™ compatible:
|
no |
| Touchscreen: |
yes |
| Supports AIS (tracks target ships'
position): |
yes |
| Supports DSC (displays position data
from DSC capable VHF radio): |
yes |
| Audible alarms: |
yes |
| Tide tables: |
yes |
| Hunt/fish calendar: |
no |
| Sun and moon information: |
yes |
| 3-D map view: |
yes (with optional BlueChart g2 Vision
card) |
| Auto Guidance: |
yes (with optional BlueChart g2 Vision
card) |
| Automatic routing (turn by turn routing
on roads): |
yes |
| XM WX Weather & Radio for U.S.
compatible: |
yes |
| Voice prompts (e.g. "Turn right in 500
ft."): |
yes (12v/speaker) |
| Remote control: |
no |
| Headphone jack/audio line-out:
|
yes |
| Audio/video input/output: |
no |
| Portable: |
yes |
| Automotive/motorcycle-friendly:
|
yes |
What's in the Box:
- GPSMAP 640
- Preloaded BlueChart g2 marine charts of the coastal U.S
- Preloaded City Navigator NT North America maps (full coverage) and
worldwide satellite basemap
- Marine mount with integrated vehicle power cable
- Automotive mount with integrated vehicle power cable
- Automotive friction mount
- Lithium-ion battery pack
- AC charger
- USB cable
- Protective cover
- Owner's manual
- Quick reference guide
- Installation instructions
|
