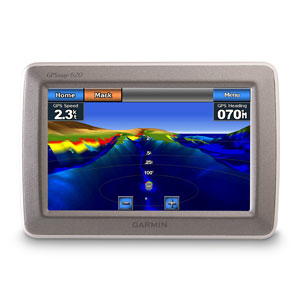

Navigate by land and by sea with the Garmin GPSMAP 620. This full-featured
marine chartplotter pulls double duty with an automotive mode that’s ready to go
as soon as you reach the shore when loaded with optional City Navigator NT road
maps for North America. And to make sure you always know the way, the GPSMAP 620
comes standard with a high-sensitivity GPS receiver and brilliant,
high-resolution touchscreen display.
Powerful and Portable
Featuring a marine and an automotive mode, a high-sensitivity GPS receiver,
and a rugged case with waterproof (IPX7) design, the GPSMAP 620 is ready for
your next outing. The GPSMAP 620 effortlessly shifts gears between marine and
automotive modes. When supported by the marine mount, you’ll have at-a-glance
access to your marine data. And when used with the optional automotive mount and
City Navigator NT for North America map data, the automotive mode is
automatically activated and the GPSMAP 620 becomes a robust on-the-road
navigator.
Designed to Shine
With a brilliant 5.2-inch WVGA touchscreen display, and an intuitive
interface, you’ll have everything you need to navigate with confidence. The
GPSMAP 620 comes preloaded with a worldwide satellite basemap for
‘view-from-space’ imagery of shorelines and other surface features in the area.
By Sea
In marine mode, the GPSMAP 620 provides 3D ‘mariner’s eye view’ above the
waterline, ‘fish eye view’ below the waterline, and Auto Guidance technology
that searches chart data to suggest the best passage with optional BlueChart® g2
Vision data. And you’ll always get the big picture with a worldwide basemap that
comes standard on the GPSMAP 620. The GPSMAP 620 is also NMEA 0183 compliant, so
it can be easily added to an existing marine network. And with access to fishing
charts, tide and current data, marine services, coastal roads and more via
optional BlueChart g2 Vision data, you’ll always be in the know while you’re on
the water.
By Land
In automotive mode, the GPSMAP 620 provides turn-by-turn directions that
speak street names (with required City Navigator NT for North America data). And
route planning has never been easier. Whether you’re searching for boat shops or
bait shops, you’ll be able to plan the quickest and most efficient route. You
can also create custom points of interests (POIs) and set up proximity alerts to
let you know what’s in your path as you travel down the road.
Physical & Performance:
|
| Unit dimensions, WxHxD:
|
5.9"W x 4"H x 1.9"D (15.0 x
10.2 x 4.8 cm) |
| Display size, WxH:
|
4.5"W x 2.7"H (11.4 x 6.9
cm); 5.2" diag (13.2 cm) |
| Display resolution, WxH:
|
800 x 480 pixels
|
| Display type: |
WVGA |
| Weight: |
17.3 ounces (490.4 g)
|
| Battery: |
rechargeable lithium-ion
|
| Battery life: |
up to 9 hours |
| Waterproof: |
yes (IPX7) |
| Antenna: |
internal |
| NMEA input/output:
|
NMEA 0183 |
| RoHS version available:
|
yes |
Maps & Memory:
|
| Basemap: |
yes |
| Preloaded maps: |
no |
| Ability to add maps:
|
yes |
| Built-in memory:
|
internal solid state
|
| Accepts data cards:
|
SD™ card slot |
|
Waypoints/favorites/locations: |
1500 (marine mode); 1000
(automotive mode) |
| Routes: |
50 (marine mode); 10
(automotive mode) |
| Track log: |
10,000 points, 20 saved
tracks (marine mode); 10,000 points, no saved tracks (automotive mode)
|
Features:
|
| Garmin radar compatible:
|
no |
| Garmin sonar compatible:
|
no |
| CANet® compatible:
|
no |
| Garmin Marine Network™
compatible: |
no |
| Touchscreen: |
yes |
| Supports AIS (tracks target
ships' position): |
yes |
| Supports DSC (displays
position data from DSC capable VHF radio): |
yes |
| Audible alarms: |
yes |
| Tide tables: |
yes |
| Hunt/fish calendar:
|
no |
| Sun and moon information:
|
yes |
| 3-D map view: |
yes (with optional BlueChart
g2 Vision card) |
| Auto Guidance: |
yes (with optional BlueChart
g2 Vision card) |
| Automatic routing (turn by
turn routing on roads): |
yes (with optional mapping
for detailed roads) |
| XM WX Weather & Radio for
U.S. compatible: |
no |
| Voice prompts (e.g. "Turn
right in 500 ft."): |
yes (with optional mapping
for detailed roads and auto mount) |
| Remote control: |
no |
| Headphone jack/audio
line-out: |
yes |
| Audio/video input/output:
|
no |
| Portable: |
yes |
|
Automotive/motorcycle-friendly: |
yes |
What's in the Box:
- GPSMAP 620
- Preloaded worldwide satellite basemap
- Marine mount with integrated vehicle power cable
- Lithium-ion battery pack
- AC charger
- USB cable
- Protective cover
- Owner's manual
- Quick reference guide
- Installation guide
|
