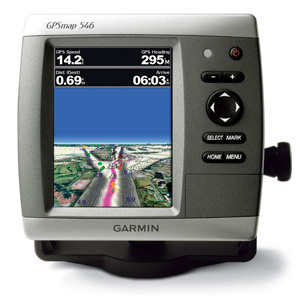

The Garmin GPSMAP 546 is a compact chartplotter that features a
high-resolution, super-bright 5” VGA color display along with an improved
high-speed digital design for increased map drawing and panning speeds. It’s
ready to go with an easy-to-use interface and a built-in, satellite-enhanced
basemap preloaded with all U.S. coastal areas, including Alaska and Hawaii as
well as detailed charts for Bermuda. The GPSMAP 546 also accepts BlueChart g2
Vision cards for added features and functionality such as high-resolution
satellite imagery, 3D views and Auto Guidance technology.
Explore the Seas
The Garmin GPSMAP 546 comes ready to go with preloaded U.S. coastal area map
data. For areas outside the U.S., the Garmin GPSMAP 546 has a worldwide basemap
with satellite images in place of more traditional maps. The GPSMAP 546 also
comes standard with a high-sensitivity GPS receiver for superior satellite
tracking and quicker acquisition times. In addition, the GPSMAP 546 can receive
U.S. graphical weather data via optional GXM 51 satellite receiver/antenna. And
with an SD card slot, it’s easy to add additional maps without connecting to a
computer.
Add Sonar
Where applicable, the sounder version, GPSMAP 546s, comes with a powerful
dual-frequency transducer that clearly illustrates depth contours, fish targets
and structures whether you’re fishing in freshwater or off the coast. The Garmin
GPSMAP 546 and GPSMAP 546s are also NMEA 2000-certified for easy connectivity
with sensors, instruments and future marine offerings.
Add Extras with BlueChart g2 Vision
With the optional BlueChart g2 Vision SD card, you can add a whole new
dimension of exceptional features to your chartplotter.
- 3D Mariner’s and Fish Eye view provides you with a 3-dimensional
perspective of map information, both above and below the waterline
- High-resolution satellite images and aerial photographs help you orient
yourself in unfamiliar areas
- Auto Guidance technology searches through all relevant charts to create
a route you can actually follow — one that avoids obstacles, shallow water,
buoys and other obstructions
Physical & Performance:
|
| Unit dimensions, WxHxD: |
5.9" x 6.4" x 2.9" (15.0 x 16.3 x 7.4
cm) |
| Display size, WxH: |
3.0" x 4.0", 5.0" diagonal (7.6 x 10.2
cm, 12.7 cm diagonal) |
| Display resolution, WxH: |
480 x 640 pixels |
| Display type: |
VGA display |
| Weight: |
less than 1.75 lb (0.8 kg) |
| Battery: |
none |
| Battery life: |
none |
| Waterproof: |
yes (IPX7) |
| High-sensitivity receiver: |
yes |
| Antenna: |
internal |
| NMEA input/output: |
NMEA 0183 compatible and NMEA 2000
certified |
Maps & Memory:
|
| Basemap: |
yes |
| Preloaded maps: |
yes (coastal maps) |
| Ability to add maps: |
yes |
| Built-in memory: |
none (cannot load maps to internal
memory) |
| Accepts data cards: |
SD card slot |
| Waypoints/favorites/locations:
|
3,000 |
| Routes: |
100 |
| Track log: |
20,000 points; 50 saved tracks
|
Features:
|
| Garmin radar compatible: |
no |
| Garmin sonar compatible: |
yes |
| CANet compatible: |
no |
| Garmin Marine Network compatible:
|
no |
| Touchscreen: |
no |
| Supports AIS (tracks target ships'
position): |
yes |
| Supports DSC (displays position data
from DSC capable VHF radio): |
yes |
| Audible alarms: |
yes |
| Tide tables: |
yes |
| Hunt/fish calendar: |
no |
| Sun and moon information: |
yes |
| 3-D map view: |
yes (with optional BlueChart g2 Vision
card) |
| Auto Guidance: |
yes (with optional BlueChart g2 Vision
card) |
| Automatic routing (turn by turn routing
on roads): |
no |
| XM WX Weather & Radio for U.S.
compatible: |
yes |
| Voice prompts (e.g. "Turn right in 500
ft."): |
no |
| Speaks street names (e.g. "Turn right ON
ELM STREET in 500 ft."): |
no |
| Remote control: |
no |
| Headphone jack/audio line-out:
|
no |
| Audio/video input/output: |
no |
| Portable: |
no |
| Automotive/motorcycle-friendly:
|
no |
What's in the Box:
- Garmin GPSMAP 546/546s*
- Tilt/swivel mount
- Protective front cover
- Power/data cable
- Documentation
*Sounder available with and without dual-frequency transducer.
Versions:
GPS - GPSMAP 546, GPS Only - No Sounder
S - GPSMAP 546s, Sounder No Transducer
SDF - GPSMAP 546s, Sounder with Dual-Frequency Transducer
|
