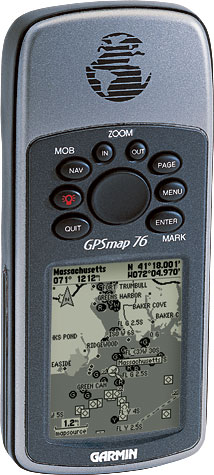

The GPSMAP 76 is designed to provide precise GPS positioning using correction data obtained from the Wide Area Augmentation System. This unit features a built-in quad helix antenna for superior reception and can provide position accuracy to less than three meters when receiving WAAS corrections. The GPSMAP 76 has an internal memory capacity of eight megabytes. In addition, it comes with a built-in basemap of cities, coastlines, lakes, rivers, interstates, and interstate exit information and a database of nautical navaids. This unit has eight megabytes of internal user memory for storing optional MapSource«ù detailed maps, including marine cartography. This memory is preloaded from the factory with worldwide cities (populations greater than 200,000) and nautical navigation aids such as lights, buoys, sound signals and day beacons. The GPSMAP 76 is also preloaded with tide data for the United States. An extra-large display measuring 1.6"W x 2.2"H gives users a clear view of information, while a waterproof case means the GPSMAP 76 will keep working well even if it's been submerged in water. Even more amazing, this unit will actually float if accidentally dropped in the water. | | | Plotter/Moving Map Features | | | | | Basemap: Built-in Americas Highway, Atlantic Highway or Pacific Highway basemap with oceans, lakes, rivers, cities, interstates or major motorways, principal and major thoroughfares and political boundaries. MapSource«: Compatible with most Garmin« MapSource products including MapSource BlueChart« marine cartography, MetroGuide« and Fishing Hot Spots«. Accepts up to 8 megabytes of downloaded map detail. | | | Waypoints/icons: 500 with name and graphic symbol, 10 nearest (automatic), 10 proximity Routes: 50 reversible routes with up to 50 points each, plus MOB and TracBack« modes Tracks: Automatic track log; 10 saved tracks let you retrace your path in both directions Trip computer: Current speed, average speed, resettable max. speed, trip timer and trip distance Alarms: Anchor drag, approach and arrival, off-course, proximity waypoint, shallow water and deep water Tables: Built-in celestial tables for best times to fish and hunt, sun and moon rise, set and location Map datums: More than 100 plus user datum Position format: Lat/Lon, UTM/UPS, Maidenhead, MGRS, Loran TDs and other grids, including user grid | | | Basemap: Detailed basemap with cities, highways, interstates, exit info, rivers, lakes; Preloaded with worldwide cities, navaids, and U.S. tide data Uploadable Maps: Accepts up to 8 megabytes of downloaded map detail from a variety of optional MapSource CDs** Receiver: WAAS-enabled, 12 parallel channel GPS receiver continuously tracks and uses up to 12 satellites to compute and update your position Acquisition times: - Warm: Approximately 15 seconds
- Cold: Approximately 45 seconds
- AutoLocate«: Approximately 5 minutes
Update rate: 1/second, continuous GPS accuracy: - Position: < 15 meters, 95% typical*
- Velocity: 0.05 meter/sec steady state
DGPS (USCG) accuracy: - Position: 3-5 meters, 95% typical*
- Velocity: 0.05 meter/sec steady state
DGPS (WAAS) accuracy: - Position: < 3 meters, 95% typical*
- Velocity: 0.05 meter/sec steady state
Dynamics: 6 g's Interfaces: RS232 with NMEA 0183, RTCM 104 DGPS data format and proprietary Garmin Antenna: Built-in quadrifilar, with external antenna connection (MCX) Differential: DGPS (USCG and WAAS capable) | | | | Source: Two "AA" batteries (not included) Battery Life: Up to 16 hours | | | | Size: 2.7"W x 6.2"H x 1.2"D (6.9 x 15.7 x 3.0 cm) Weight: 7.7 ounces Display: - 1.6"W x 2.2"H (4.1 x 5.6 cm)
- 180 x 240 pixels, high-contrast
- FSTN with bright backlighting
Case: Fully gasketed, high impact plastic alloy, waterproof to IEC 529 IPX7 standards Temperature range: 5¦F to 158¦F (-15¦C to 70¦C) User data storage: Indefinite, no memory battery required |
|
