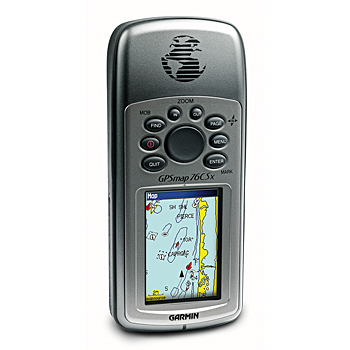

The Garmin GPSMAP 76CSx is a refreshing upgrade of the GPSMAP 76CS, one of
our most popular models for outdoor and marine use. This unit features a
removable microSD card for detailed mapping memory and a waterproof, rugged
housing. The microSD card slot is located inside the waterproof battery
compartment. Users can load map data and transfer routes and waypoints through
the unit’s fast USB connection.
In addition, this unit features a new, highly sensitive GPS receiver that
acquires satellites faster and lets users track their location in challenging
conditions, such as heavy foliage or deep canyons. The GPSMAP 76CSx also
incorporates a barometric altimeter for extremely accurate elevation data and an
electronic compass that displays an accurate heading while standing still.
Considered the mainstay among serious outdoor enthusiasts, the GPSMAP 76CSx
and GPSMAP 76Cx offer a large color TFT display and turn-by-turn routing
capability. These units also float when dropped in the water. Each unit comes
with a blank 128 MB microSD card. Owners of these new x-series handhelds can
also purchase new microSD cards that are pre-loaded with MapSource® Topo and
inland lake maps, BlueChart® marine cartography, and City Navigator™ street
maps.
GPSMAP 76CSx Features:
- New high-sensitivity WAAS-capable GPS receiver by SiRF
- Built-in quad-helix receiving antenna with remote antenna capability
- Unit dimensions: 2.7” W x 6.2” H x 1.4” D
- Display: 1.5” W x 2.2” H, 2.6”-diagonal, 256-color, transflective TFT
(160 x 240 pixels)
- Weight: 7.6 ounces with batteries (not included)
- Sensors:
-Electronic compass displays accurate heading while standing still
-Barometric altimeter with automatic pressure trend recording
- microSD card slot allows for storage of optional MapSource detail (128
MB microSD included)
- LED backlit display and keypad
- Battery life: 20 hours (typical use) using two AA alkaline batteries
- Includes a built-in Americas autoroute basemap with automatic routing
capabilities, including highways, exits, and tide data (USA only)
- Internal memory is preloaded with a marine point database
- 1,000 user waypoints with name and graphic symbol; 50 reversible routes
- Position formats include Lat/Lon, UTM, Loran TDs, Maidenhead, MGRS, user
grid, and more
- Audible alarms for anchor drag, arrival, off-course, proximity waypoint,
and clock
- Large-numbers option for easy viewing; dual-position display mode
- Trip computer provides odometer, stopped time, moving average, overall
average, total time, max speed, and more
- 10,000-point automatic track log; 20 saved tracks (500 points each) let
you retrace your path in both directions
- Elevation computer provides current elevation, ascent/descent rate,
minimum/ maximum elevation, total ascent and descent, average and maximum
ascent and descent rate
- Navigation instructions can be shared with repeaters, plotters, and
autopilots using NMEA protocols through the dedicated serial port.
- Built-in celestial tables for sun and moon calculations and the best
times to fish and hunt
- Compatible with most MapSource products including BlueChart, City
Navigator, U.S. TOPO 24K, U.S. TOPO, and Recreational Lakes with Fishing Hot
Spots
- Water resistant: IEC 60529 IPX7 standards
- Unit floats when dropped in the water.
- Package Includes:
- GPSMAP 76CSx unit
- 128 MB microSD
- USB interface cable
- MapSource Trip & Waypoint Manager CD
- Lanyard
- Owner's Manual
- Quick-Start Guide
|
