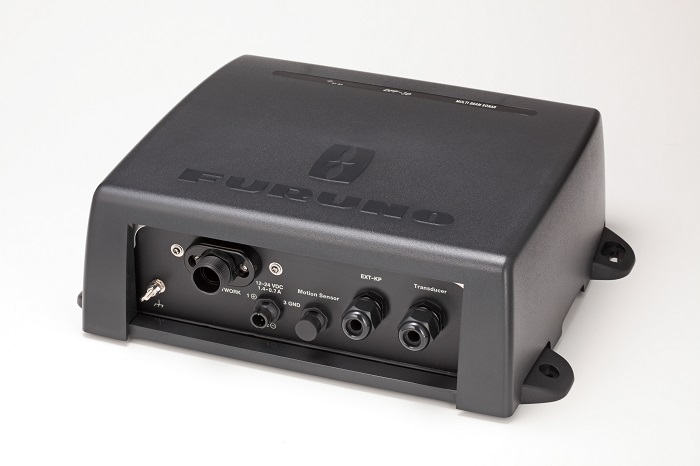

Furuno DFF-3D Network Multi-Beam Sonar
| Frequency |
165 kHz |
| Range |
300 m down - 200 m sidebar |
| Power usage |
12-24 VDC |
Revolutionary 3D multi-beam sonar for deep
and wide water columns
You may think you’ve seen 3D Multi-Beam Sonar in action, but many of those
images begin disappearing as you approach 200 feet. Furuno’s DFF3D takes 3D Fish
Finding to new depths. We’re talking depths of over 980 feet, with Side Scanning
over 650 feet. See fish and bottom structure as you’ve never seen them before,
at depths previously unfathomable. Now you can visibly see fish schools and the
underwater landscape at great depths in amazing detail. The DFF3D turns your
NavNet TZtouch or TZtouch2 MFD into a multi-beam sonar that can see 120-degrees
port to starboard, allowing you to see the depth and direction fish schools are
moving, while displaying the seabed condition in real time.
Instantly understand fish distribution at
a glance
Cross section displays the real-time sea column echo in 120 degrees port and
starboard. This mode aids in instantly understanding the distribution of bait
fish and the water column condition, with a detection range of over 650 feet,
depending on bottom, water and installation conditions.
Intuitive 3D Sounder History
The 3D sounder history provides an intuitive and easy to understand 3D image of
the seafloor, along with fish school icons. This mode is useful in a variety of
situations, such as selecting a fishing hot spot and assessing the seabed
condition.
Better understand the depth of fish targets
A single (directly under boat) or triple direction (middle, left and right)
fish finder image are displayed simultaneously. The Triple beam display helps to
understand the depth of fish targets and the seabed condition in each direction,
as well as the direction the target fish are moving. Each beam angle and beam
width are selectable.
See the seafloor structure like never
before
Side scan clearly displays the shape of structure as a high definition image in
port and starboard direction. It is suitable for searching the seabed and
understanding the sea floor structure. The sidebar detection range is over 650
feet in a 120-degree swath port to starboard, a distance you've never seen
before!
Packing List
- DFF-3D DFF-3D Multibeam Network Sonar
(x1)
- 000-155-853 Fuse FGBO 5A (x2)
- 000-162-608 M5 x 20 Tapping Screw
(x4)
- 000-167-890-10 Network Cable 5M (x1)
- 000-157-939 Power Cable Assy (x1)
- 000-166-666-10 Crimp Lug Red 1.25
(x1)
- 000-193-508-10 Conductive Tape (x1)
- OME-135-20Z Operator's Manual (x1)
|
