Details: |
The Digital Dash kit digital gauge set is an easy
to use analog style instrument, with advanced ECU monitoring capabilities
demanded by today's leading engine manufactures.
The digital instrument communicates dircetly with
the NEMA2000 and SmartCraft protocols used by the engine ECU providing an
important link between the operator can tell the status of the health of the
engine including diagnostic messages, fault alerts, and parameter information.

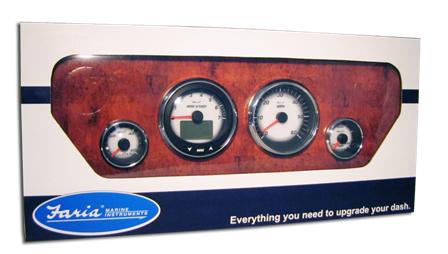

The Digital Dash kit from Faria is a great value for those boat owners looking
to upgrade the instruments on their boat with American Made, OEM drop in
replacements.
The KTF042 4 Gauge Box Set for NMEA2000
includes:
- MG3000 7000 RPM Tachometer - 4in.
(3.375" dia. hole) - The MG3000 features include larger lighted buttons with
tactile feedback, LED back lighted dial, fog-resistant glass or
polycarbonate lens and plug and play connectorized cases. The new daylight
readable green LCD is visible even in direct sunlight. The intuitive design
is so user-friendly that the customer will never need a manual to operate
the product. The ability to interface to analog signals reduces installed
costs significantly.The instrument combinations available in the MG3000
product suite are virtually limitless. Connect more than 25 discreet
instruments to the tachometer or use the tachometer alone. The choice is
yours!
- •Utilizes both analog and digital inputs to
reduce system cost
•Easily connects to all engine bus protocols
•GPS enabled to display GPS speed, COG, Lat/Long, Heading and Clock
•Audible and visual alarms
•Stepper motor driven pointers
•User definable screens and alarms
•Deutsch or Packard marine connectors are Plug and Play
•One button unit conversions
•Engine Diagnostic Error codes stored in dedicated screen
•Analog Depth, Air Temperature, Paddle wheel Pitot Speed, Trim, Fuel Level
and Water Pressure inputs
•LCD flashes Red for engine critical Alarms, Yellow for cautionary Alarms
•Throttle Position displayed F•N•R on dial
•Multiple 5"/4"/2" instrument and dash set options in Faria Standard series
•Custom cosmetic options upon request
•LED lighting and RGB LEDs for multi-color light options
- MG1000 60 MPH Speedometer - 4in.
(3.375" dia. hole) The MG1000 is the stepping-stone of digital
instrumentation. This innovative digital gauge system requires no LCD's, no
system initialization, no menu setups and no user manual interaction for use
-ever! Just install and go boating! The MG1000 gauge system displays engine
ECU data and alarms. Installation is simplified by reducing wiring and setup
time. Our instruments communicate with the engine ECU for the most accurate
information and error codes.This system is the lowest cost, most
user-friendly digital product in the market for customers installing digital
technology. Multiple analog inputs and warning lights reduce cost while
still providing the customer with everything they need.
- •Easily connects to all engine bus protocols
•All Tachometers are GPS enabled
•Audible and visual alarms
•10 levels of lighting adjustments
•Stepper motor driven pointers
•Custom cosmetic options upon request system cost
•Deutsch or Packard marine connectors utilized
•LED lighting for multi-color light options
- Digital Trim and Water Pressure
Gauges (0-60 PSI) - The discrete Digital Trim and Water Pressure Gauges
connect directly to the MG3000 Tachometer. Digital signals are processed by
the engine and sent through the Tachometer providing an easy to use display
of the information. The stepper motor driven pointer provides accurate
feedback of Trim and Water Pressure reported by the engine ECU.
|
|
Did you Know?
ALL products we sell are factory new and come with the full Manufacturers Warranty! |
|
|
|
|
|
