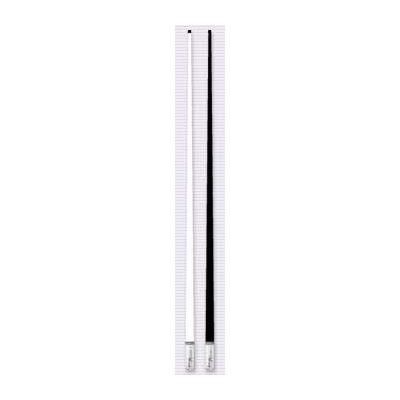

Exceptional cellular and PCS communication and increased AM/FM reception in one
8' antenna. Strong signal pulling power with 9dB gain for cellular and PCS.
Increased AM/FM clarity to bring in your favorite radio station.
The Trifecta Cell / AM/FM / PCS is made to use with all cellular systems:
CDMA, TDMA, PCS, GSM, DCS, I-den & AMPS and is compatible with all analog,
digital, dual band and tri-mode phones.
-
Stainless steel ferrules
-
High-gloss urethane finish
-
Powerful brass radiators
-
Soldered connections
-
Power directing ferrite choke bead
-
Includes two 20' exclusive low loss, foil shielded, UV stable RG-8X marine
cables
-
Easy installation; factory installed mini-UHF connectors on each cable
-
Includes Motorola type plug for AM/FM and double male mini-UHF adapter for
cellular
-
Mounts 1”-14 threaded base
| |
Gain |
Max Input
Power |
VSWR |
Bandwidth
VSWR |
|
AM/FM |
Unity |
N/A |
N/A |
N/A |
|
Cellular |
9dB |
250 Watts |
1.15:1@850 MHz |
<2.0:1=810-950 MHz |
|
PCS |
9dB |
250 Watts |
1.15:1@1900 MHz |
<2.0:1=1800-1980 MHz |
|
