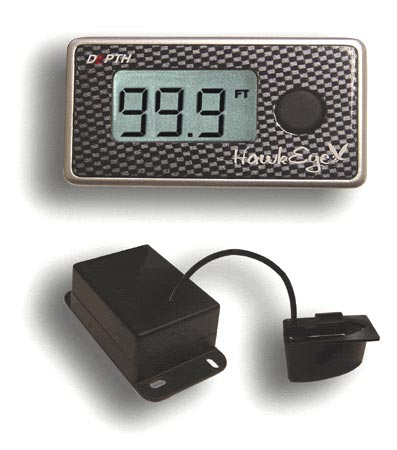

The World’s First Depth Sounder Perfect for PWC’s...With it’s completely
waterproof construction, micro-display housing, and ShootThru sonar Technology,
the Norcross DF1120S is as much at home ripping across a lake at 70 MPH on a PWC
as it is searching for a secluded cove on a tender. The Norcross 1120S’s compact
micro-display housing can be easily mounted within reach on any vessel’s dash,
while EasyTouch Programming allows one-touch access to a built-in audible depth
alarm. An auto off feature even kills the power -- not your battery. Go Ahead,
Douse it with Water and Hold the Throttle Wide Open. The Norcross DF1120S will
Perform, WILL YOU
- Algorithmic Programming Reduces False Readings
- Impressive Depth Readings Tested at Speeds Over 70+ MPH (113 KPH)
- Reads in English and metric from 2’ to 99.9’ (.6 to 30.5 Meters)
- Instant Depth readings, 4-Times Per Second, in the Nearest 1/10th Foot
or Meter
- ShootThruTM Technology Allows Easy installation of the Glue-In
Transducer on Fiberglass and Aluminum Hulls.
- Compact, Micro-Display Requires Only 2” x 1.1” of Mounting Space
- Shallow Water Alarm with 2-Stage Audible and Visual Advanced Warning
System from 3’ to 10’ (1-3 Meters)
- External Alarm Warning Horn
- Waterproof Fuse Housing for External 12-Volt Power Source
- 30’ (9 Meter) Transducer Cable with Waterproof Plug
- Impact Resistant and Waterproof
- Two Year Warranty
SPECIFICATIONS
- Unit Dimensions 2” x 1.1” (50 x 26
- Display Type Polarized Liquid Crystal
- Display Window Size 1” x .5” (24.5 x 14.1
- Power Requirement External 12 Volt
- Depth Alarm Range 3-10 Ft (1-3 M)
- Units of Measure English and Metric
- Depth Range Max. 99.9 Ft (30.5 M)
- Depth Range Min. 2 Ft (.6 M)
- Depth Readout Increments .1 Ft/M
- Sonar Frequency 200 KHZ
- Tested Speed Rating (**) 70 MPH (112 KPH)
- Sonar Beam Angle 20 Degrees
- Waterproof Limit 3 Ft (1 M)
- Warranty 2 Years
- Transducer Cable Length 30 Ft (9 M)
|
