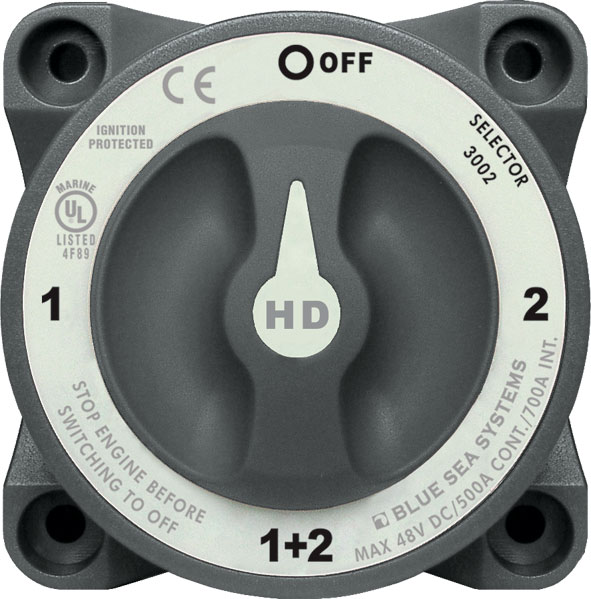

  Blue Sea 3002 Battery Switch HD Selector
Click to enlarge

Blue Sea 3002 Battery Switch HD Selector

Item #: BLU3002



Quantity:

23%

List Price:

$115.59

Price:

$88.99



In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables
  • M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only
  • Case design allows surface or rear panel mounting
Voltage Rating 48 Volts DC Maximum
Case Material Reinforced Polycarbonate
Cable Quantity to Meet Ratings Two Cables / Terminal
Terminal Stud Size 1/2" (M12)
Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)
Terminal Stud Torque 220 in-lb (24.86 N·m)
Continuous Rating: (UL 1107) 500 Amperes DC
Inrush Rating: 0.25 sec (10 repeats)* 1750 Amperes DC
Cable Size to Meet Ratings 4/0 AWG (95mm²)
Terminal Stud, Tin-Plated Copper 1/2" (accepts M12 terminal ring)
Cranking Rating: 9.75 sec (10 repeats)* 1000 Amperes DC
Weight Lb (Kg) 1.25 (0.57)
Maximum Voltage Rating 48 Volts DC
Intermittent Rating: 5 min (UL 1107) 700 Amperes DC
Agency Standards UL Listed - UL 1107 Electric Power Switch Meets UL 1500 and SAE J1171 external ignition protection requirements
