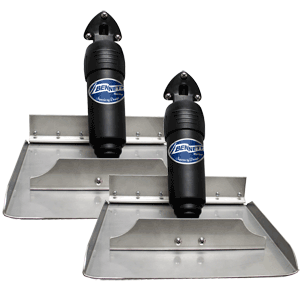

BOLT 12x9 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered Boats
Boaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.
Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.
Bennett strongly recommends hydraulic trim tabs for most applications, electric trim tab systems are suitable for:
Trailered boats from 17-28 feet
Single actuator use, due to the inability to synchronize two electric actuators on the same tab
Features:
Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment
Robust, water-tight black nylon actuator provides trouble-free operation
Main seal located high to protect against marine growth and water intrusion failures
Quieter than any other system on the market - No more scaring the fish away!
Installation is fast - no need to disassemble parts of the actuator
What's in the Box:
12-volt actuators (2) with 6ft. wire harnesses and waterproof connectors
Stainless steel trim planes (2) and mounting plates
Control box with 3ft. wire harness and diagnostics
20 Ft Wire Harness with waterproof connectors
Requires one of the following controls to complete the system:
BRC4000 - Bolt Rocker Switch
BCN6000 - Bolt Control - Non Indicator
BCI8000 - Bolt Control - With Indicator
