The Raymarine 45 STV Satellite
television Antenna System brings Raymarine performance and quality to on board
entertainment. Featuring a stylish and compact dome, the 45 STV provides
uninterrupted satellite television reception in almost any condition. The fully
automatic, marine stabilized antenna quickly identifies compatible DVB (Digital
Video Broadcast) satellites, using a unique Wide Range Search (WRS) algorithm.
Highly accurate satellite tracking at sea is achieved via the 45 STV's Dynamic
Beam Tilting technology, ensuring a clear picture in the most challenging
conditions.
45 STV Features
- Dual LNB Design: Watch the
weather at the helm while others enjoy the game down below. The 45 STV's
dual LNB design allow support of multiple receivers.
- Wide Range Search (WRS) Algorithm:
Unique high speed search allows for fast identification and acquisition of
satellites.
- Dynamic Beam Tilting (DBT)
Technology: Enables the 45 STV to track signals in the most extreme
weather and sea conditions.
- Compact and Lightweight:
With a footprint of only 19.2 inches in diameter and a weighing in at
sprightly 31 pounds, the 45 STV makes underway satellite television
reception a reality for vessels of all sizes.
System Components

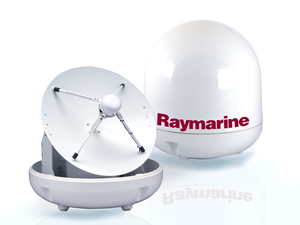

The Raymarine 45 STV Satellite television Antenna
System consists of the following components:
45 STV Antenna
- Rugged stabilized antenna with dual
LNB.
- Stylish, compact, and lightweight.
- Engineered for the harshest marine
environments.
- Simplified cabling for easy
installation.
|
|
Antenna Control Unit
- Provides power to 45 STV antenna.
- Displays antenna status.
- Enables manual satellite selection.
- Easily upgraded by PC connection.
|
|
To complete the installation, you will need to
purchase and activate a DVB compatible satellite TV receiver with the provider
of your choice and provide a television monitor or other suitable video display.
|
|
|
Antenna Dish Diameter |
18" (45 cm) |
|
Operating Voltage |
10.7-16V DC |
|
Overall Dimensions (W x H) |
19.2" x 20.8"
(49 x 53 cm) |
|
Product Weight |
31.6 lbs. (14
Kg) |
|
|
|
|
Antenna Gain |
@12.25 GHz,
33dBi |
|
Azimuth Range |
680 Degrees |
|
Elevation Range |
0 degrees to
+90 degrees |
|
Frequency |
Ku Band
(10.7-12.75 GHz) |
|
LNB |
Dual Output |
|
Minimum EIRP |
50 dBW |
|
Position Repeatability |
0.1 Degrees |
|
Roll and Pitch Range |
Roll +/- 25
Degrees. Pitch +/- 15 Degrees |
|
Roll and Pitch Tracking |
50 Degrees Per
Second |
|
Shock |
27G, 11 msec |
|
Turn Rate |
50 Degrees Per
Second |
|
|
|
|
Approvals |
FCC and CE
Approved |
|
Operating Temperature Range |
14 to 131
Degrees F (-10 to 55 Degrees C) |
|
Storage Temperature Range |
-4 to 158
Degrees F (-20 to 70 Degrees C) |
|
Warranty |
2 years parts,
1 year labor |
|
|
