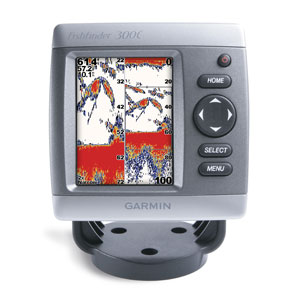

Garmin 300C Color FishfinderThe affordable Garmin Fishfinder 300C color sounder is just right for
recreational anglers who fish primarily in freshwater lakes.
See Fish in Bright ColorThe Garmin 300C has a super bright, high
resolution 3.5-inch QVGA color display with improved user interface, plus
UltraScroll for screen updates at live-action speeds. The Garmin 300C comes with
a dual beam transducer, which provides excellent coverage in shallow waters.
Benefit from High Performance SonarThe 300C features the high
performance sonar receiver found in most of the Garmin marine lineup.
Other features:
- Power output: 150 watts (RMS) 1200 watts (peak to peak)
- Auto Gain setting adjusts sonar sensitivity automatically
- See-Thru technology shows weak and strong returns simultaneously
- Round flasher display mode
- Whiteline shows you how thick the bottom is
- 2X and 4X automatic and manual zoom
- Battery voltage indicator
- Single NMEA-0183 output
| Physical & Performance: |
| Unit dimensions, WxHxD:
|
4.5" x 4.5" x 2.4" (11.4 x
11.4 x 6.1 cm) |
| Display size, WxH:
|
2.1" x 2.8", 3.5" diagonal
(5.3 x 7.1 cm, 8.9 cm diagonal) |
| Display resolution, WxH:
|
240 x 320 pixels
|
| Display type: |
QVGA |
| Weight: |
9.6 oz (272 g) |
| Waterproof: |
yes (IPX7) |
| Features: |
| CANet™ compatible:
|
no |
| Audible alarms: |
yes |
| Dual-frequency sonar
capable: |
no |
| Dual-beam sonar capable :
|
yes |
| Split-screen zoom:
|
yes |
| Ultrascroll™ (displays fish
targets at higher boat speeds): |
yes |
| See-thru® technology
(exposes fish hidden in cover): |
yes |
| Fish Symbol ID (helps
identify fish targets): |
yes |
| AutoGain Technology
(minimizes clutter, maximizes targets): |
yes |
| Whiteline (indicates hard or
soft bottom): |
yes |
| Adjustable depth line
(measures depth of underwater objects): |
yes |
| A-scope (real time display
of fish passing through transducer beam): |
no |
| Bottom lock (shows return
from the bottom up): |
yes |
| Water temperature log and
graph: |
yes |
| Water temperature sensor
included: |
yes |
| Water speed capable
(displays speed on water): |
yes |
| Other: |
| Frequency: |
80/200 kHz (dual beam)
|
| Transmit power: |
Dual Beam, 150 Watts (RMS),
1,200 Watts (peak to peak) |
| Voltage range: |
10-20 VDC |
| Maximum depth: |
900 ft (dual beam)
|
| Cone angle: |
Dual Beam: 14° - 45°
|
What's in the Box:
- Fishfinder 300C
- Transom/trolling mount transducer (dual beam)
- 6ft. power/data cable
- Bail mounting bracket
- Flush mount hardware
- Quick start manual
|
